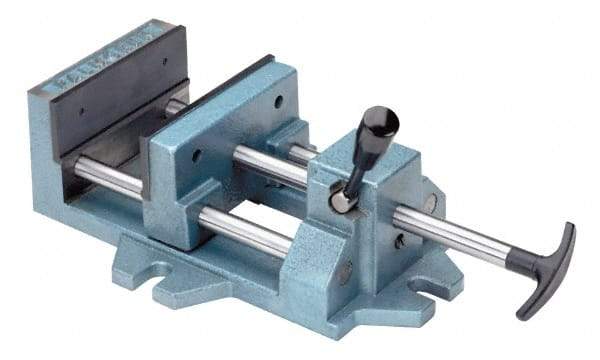

Palmgren - 8" Jaw Opening Capacity x 1-5/8" Throat Depth, Horizontal Drill Press Vise - 8" Wide Jaw, Stationary Base, Standard Speed, 19-1/2" OAL x 4-1/2" Overall Height
Item #: 67415257
Brand: Palmgren
Model #: 9612821
Exact Tooling IR#: 04
Features and Benefits
Drill press vises with a horizontal orientation are ground on the base only, for horizontal workholding.
Stationary or fixed vises are used for machining straight surfaces. They can be fastened to the machine at either a parallel or at a right angle.
Standard spindle operations feature a continuous nut design for consistent jaw movement.
| Product Specifications | |
|---|---|
| Jaw Width (Inch) | 8 |
| Jaw Opening Capacity (Inch) | 8 |
| Jaw Opening Capacity (Decimal Inch) | 8.0000 |
| Throat Depth (Inch) | 1-5/8 |
| Throat Depth (Decimal Inch) | 1.6250 |
| Orientation Type | Horizontal |
| Base Motion Type | Stationary |
| Spindle Operation Type | Standard |
| Overall Length (Inch) | 19-1/2 |
| Overall Height (Inch) | 4-1/2 |
| Base Length (Inch) | 18-1/2 |
| Base Width (Inch) | 11-3/8 |
| Model Number | QV80 |
| Jaw Style | Step |
