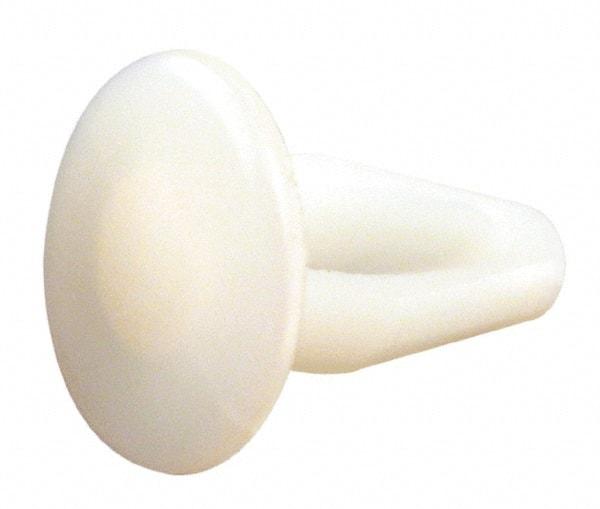

Made in USA - 0.33" to 0.34" Hole Diam, Arrow Shank, Nylon Panel Rivet - 0.895" Length Under Head, 1/8" to 0.35" Material Thickness, 0.685" Head Diam
Item #: 67357087
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Panel rivets are inserted into punched or predrilled holes in thin materials. They are push-in fasteners that resist shaking, vibration, loosening and abrasion.
Arrow shanks are compressed into holes and snap into place on the other side for a secure hold.
| Product Specifications | |
|---|---|
| Type | Panel Rivet |
| Shank Type | Arrow |
| Minimum Hole Diameter (Decimal Inch) | 0.3300 |
| Maximum Hole Diameter (Decimal Inch) | 0.3400 |
| Minimum Material Thickness (Decimal Inch) | 0.1250 |
| Maximum Material Thickness (Decimal Inch) | 0.3500 |
| Head Diameter (Decimal Inch) | 0.6850 |
| Head Height (Decimal Inch) | 0.0700 |
| Length Under Head (Decimal Inch) | 0.8950 |
| Body Diameter (Decimal Inch) | 0.3700 |
| Material | Nylon |
