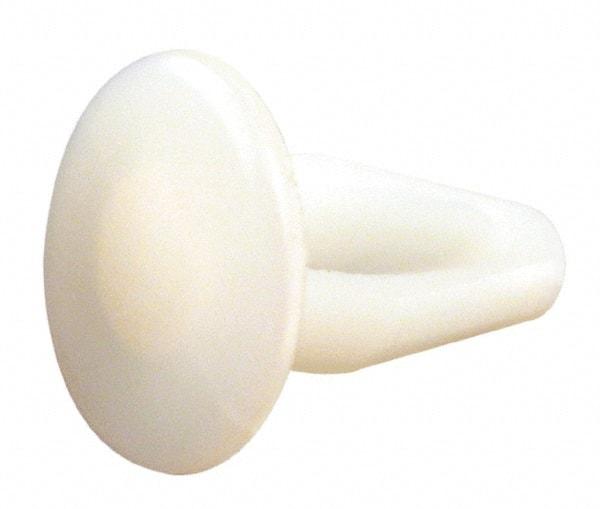

Made in USA - 0.182" to 0.192" Hole Diam, Arrow Shank, Nylon Panel Rivet - 0.4" Length Under Head, 1/16" to 1/8" Material Thickness, 0.36" Head Diam
Item #: 67356840
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Panel rivets are inserted into punched or predrilled holes in thin materials. They are push-in fasteners that resist shaking, vibration, loosening and abrasion.
Arrow shanks are compressed into holes and snap into place on the other side for a secure hold.
| Product Specifications | |
|---|---|
| Type | Panel Rivet |
| Shank Type | Arrow |
| Minimum Hole Diameter (Decimal Inch) | 0.1820 |
| Maximum Hole Diameter (Decimal Inch) | 0.1920 |
| Minimum Material Thickness (Decimal Inch) | 0.0620 |
| Maximum Material Thickness (Decimal Inch) | 0.1250 |
| Head Diameter (Decimal Inch) | 0.3600 |
| Head Height (Decimal Inch) | 0.0600 |
| Length Under Head (Decimal Inch) | 0.4000 |
| Body Diameter (Decimal Inch) | 0.2250 |
| Material | Nylon |
