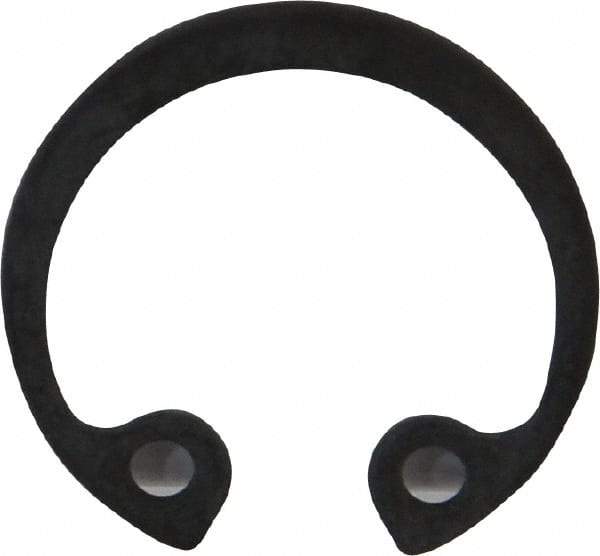

Rotor Clip - 16.8mm Nominal, 1mm Thick, Phosphate Finish, Steel Snap Internal Retaining Ring - 1.1mm Groove Width, 0.4mm Groove Depth, 16.8mm Groove Diam, Grade 1060-1090
Item #: 67157800
Brand: Rotor Clip
Model #: DHO-16ST PDB100
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Snap |
| Material | Steel |
| System of Measurement | Metric |
| Bore Diameter (mm) | 16.00 |
| Nominal Size (mm) | 16.80 |
| Groove Diameter (mm) | 16.80 |
| Groove Width (mm) | 1.10 |
| Inside Diameter (mm) | 1.70 |
| Free Outside Diameter (mm) | 17.30 |
| Military Specification | Does Not Meet Military Specifications |
| Ring Thickness (mm) | 1.00 |
| Material Grade | 1060-1090 |
| Finish/Coating | Phosphate |
| Groove Depth (mm) | 0.40 |
| Groove Diameter Tolerance (mm) | -0.110 to 0.110 |
| Free Outside Diameter Tolerance (Decimal Inch) | 0.100 to 0.360 |
| Ring Thickness Tolerance (Decimal Inch) | 0.0020 |
| Thrust Load (Lb.) | 1236.400 (Ring Safety Factor); 764.320 (Groove Safety Factor) |
| Hardness | Rockwell 30N 66-72.0 |
| Fastener Standard | SAE 1060-1090; UNS G10600-G10900 |
