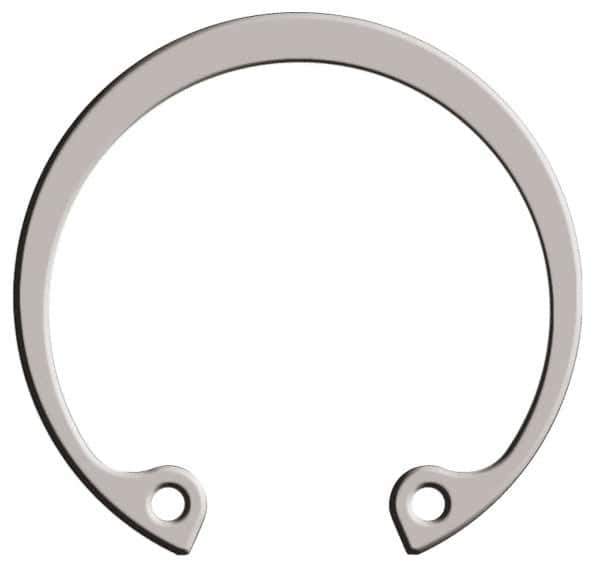

Rotor Clip - 0.078" Thick, Stainless Steel Snap Internal Retaining Ring - 0.086" Groove Width, 0.074" Groove Depth, 2.648" Groove Diam, Grade 15-7 Grade 632
Item #: 67157768
Brand: Rotor Clip
Model #: HO-250SS
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Snap |
| Material | Stainless Steel |
| System of Measurement | Inch |
| Bore Diameter (Inch) | 2-1/2 |
| Bore Diameter (Decimal Inch) | 2.5000 |
| Bore Diameter (mm) | 63.50 |
| Groove Diameter (Decimal Inch) | 2.6480 |
| Groove Width (Decimal Inch) | 0.0860 |
| Free Outside Diameter (Decimal Inch) | 2.7800 |
| Military Specification | Does Not Meet Military Specifications |
| Ring Thickness (Decimal Inch) | 0.0780 |
| Material Grade | 15-7 Grade 632 |
| Groove Depth (Decimal Inch) | 0.0740 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0060 to 0.0060 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.005 |
| Free Outside Diameter Tolerance (Decimal Inch) | -0.030 to 0.040 |
| Ring Thickness Tolerance (Decimal Inch) | -0.003 to 0.003 |
| Thrust Load (Lb.) | 15650 (Groove Safety Factor); 28014 (Ring Safety Factor) |
| Hardness | Rockwell C 44-51 |
| Fastener Standard | AMS-5529; UNS S15700 |
