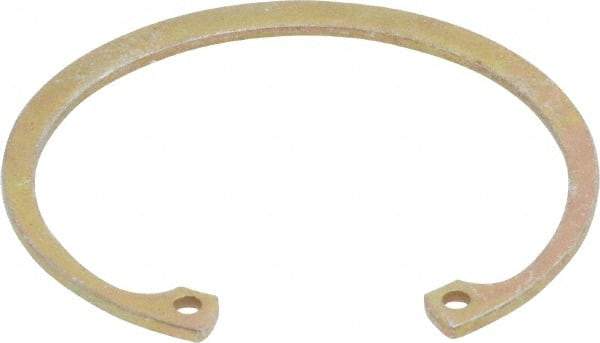

Rotor Clip - 0.062" Thick, Zinc Yellow Dichromate Finish, Steel Snap Internal Retaining Ring - 0.068" Groove Width, 0.061" Groove Depth, 2.122" Groove Diam, Grade 1060-1090
Item #: 67157040
Brand: Rotor Clip
Model #: HO-200ST ZD
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Snap |
| Material | Steel |
| System of Measurement | Inch |
| Bore Diameter (Inch) | 2 |
| Bore Diameter (Decimal Inch) | 2.0000 |
| Bore Diameter (mm) | 50.80 |
| Groove Diameter (Decimal Inch) | 2.1220 |
| Groove Width (Decimal Inch) | 0.0680 |
| Free Outside Diameter (Decimal Inch) | 2.2100 |
| Military Specification | Does Not Meet Military Specifications |
| Ring Thickness (Decimal Inch) | 0.0620 |
| Material Grade | 1060-1090 |
| Finish/Coating | Zinc Yellow Dichromate |
| Groove Depth (Decimal Inch) | 0.0610 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0050 to 0.0050 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.004 |
| Free Outside Diameter Tolerance (Decimal Inch) | -0.025 to 0.035 |
| Ring Thickness Tolerance (Decimal Inch) | -0.003 to 0.003 |
| Thrust Load (Lb.) | 10300 (Groove Safety Factor); 17763 (Ring Safety Factor) |
| Hardness | Rockwell C 47-52 |
| Fastener Standard | SAE 1060-1090; UNS G10600-G10900 |
