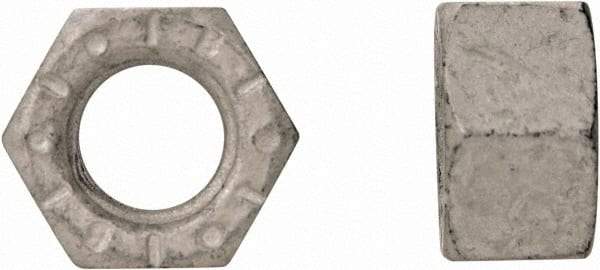

Bowmalloy - 7/8-9 Steel Right Hand Hex Nut - 1-19/64" Across Flats, 0.746" High, Bowma-Guard Finish
Item #: 66812603
Brand: Bowmalloy
Model #: BOW36609
Exact Tooling IR#: 04
Features and Benefits
Hex nuts are the most common type of nut. They have six uniform sides and are used in general-purpose fastening applications.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Type | Hex Nut |
| Material | Steel |
| Thread Size | 7/8-9 |
| Thread Direction | Right Hand |
| Material Grade | Grade 9 |
| Finish/Coating | Bowma-Guard |
| Width Across Flats (Inch) | 1-19/64 |
| Width Across Flats (Decimal Inch) | 1.2960 |
| Height (Decimal Inch) | 0.7460 |
| Hardness | Rockwell C26-C36 |
| Fastener Standard | ANSI/ASME B18.2.2 |
