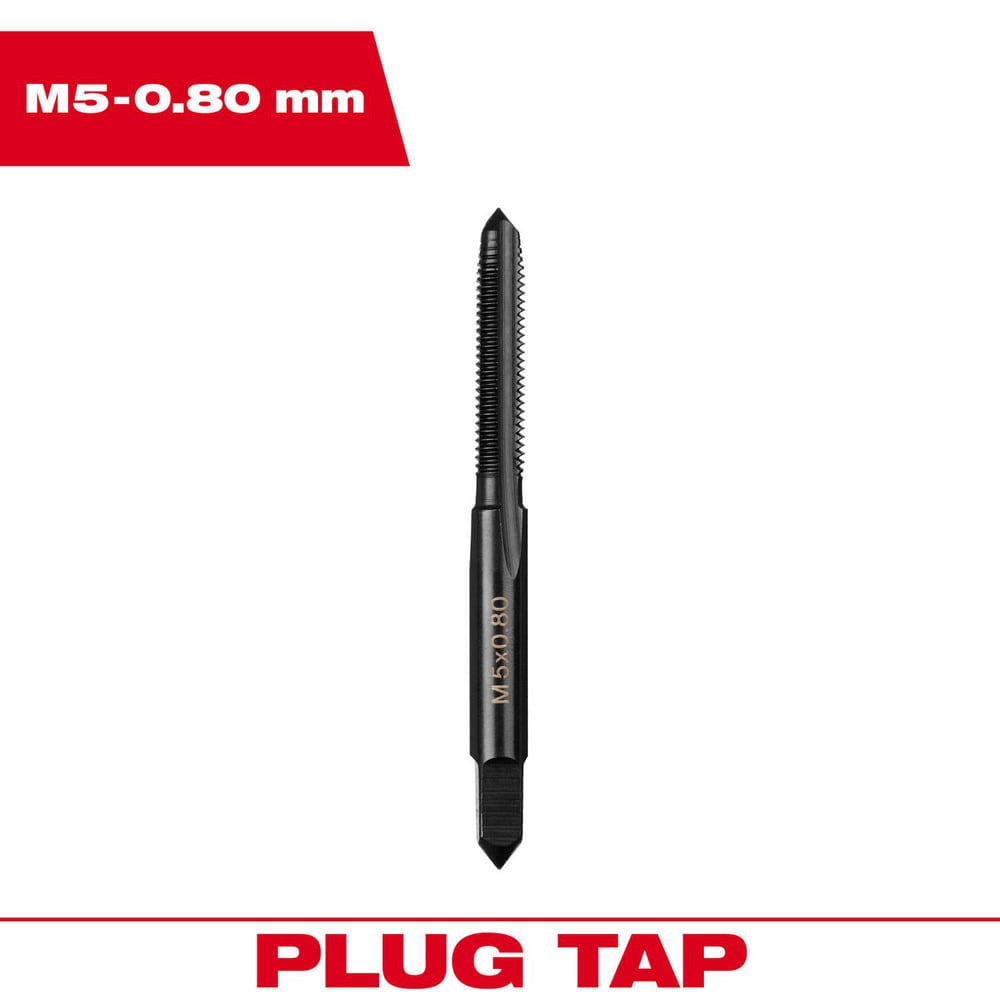

Straight Flute Tap: M5 x 0.8 3 Flute, Plug Chamfer, 2B Class of Fit, High-Carbon Steel, Black Oxide Finish
Item #: 03393253
Brand: Milwaukee Tool
Model #: 49-57-5129
Product Specifications
| Tap Type | Straight Flute |
| Thread Size (mm) | M5 x 0.8 |
| Chamfer | Plug |
| Material | High-Carbon Steel |
| Coating/Finish | Black Oxide |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Class Of Fit | 2B |
| Number Of Flutes | 3 |
| Oversize | No |
| Overall Length (Inch) | 2.5 |
| Thread Pitch (Decimal Inch) | 0.8000 |
| Thread Length (mm) | 25.40 |
| Shank Diameter (Decimal Inch) | 4.3000 |
| Tapping Depth (Decimal Inch) | 24.4000 |
| Neck Length (Decimal Inch) | 31.6000 |
| Shank Length (Decimal Inch) | 7.0000 |
| UNSPSC Code | 23241600 |
