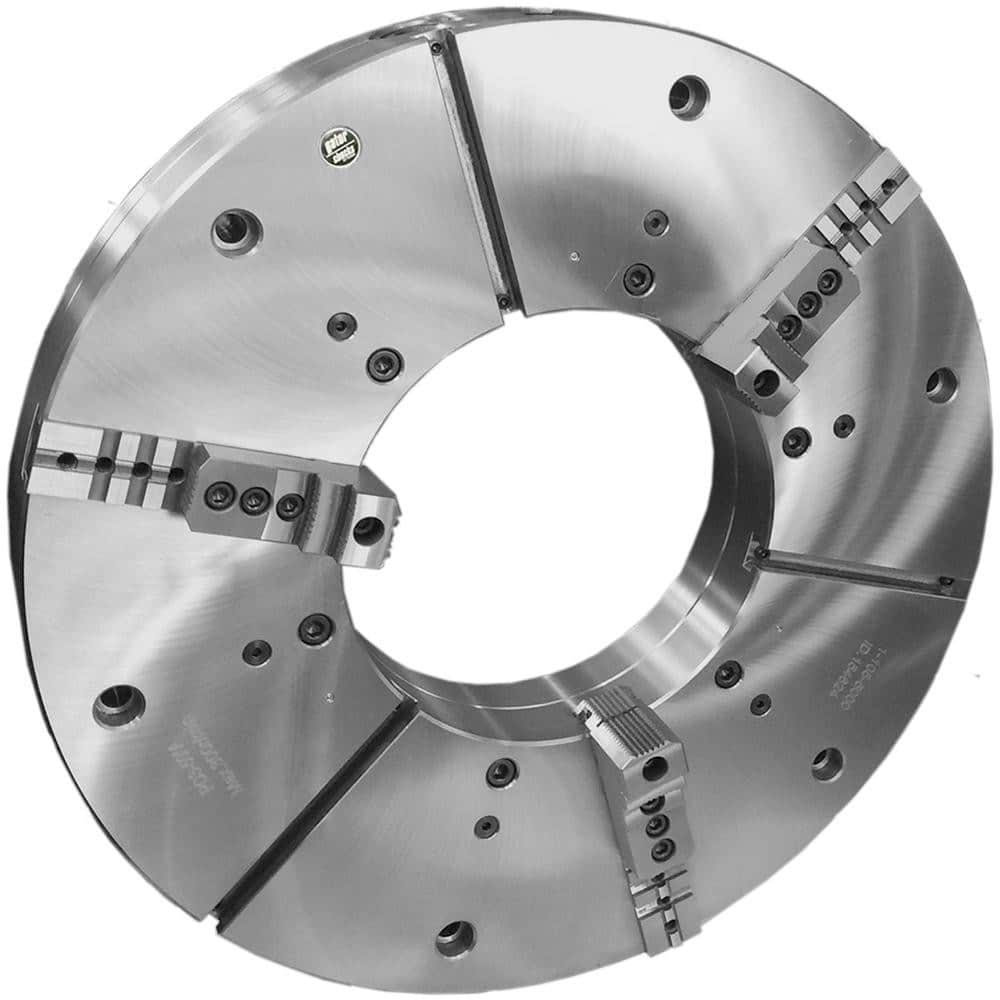

Self-Centering Manual Lathe Chuck: 3-Jaw, 40″ Dia Two-Piece Jaws, Plain Back Mount, 300 Max RPM
Item #: 66270240
Brand: Gator Lathe Chucks
Model #: 1-201-4000
Product Specifications
| Chuck Type | Self-Centering |
| Material | Steel |
| Jaw Type | Two-Piece |
| Adjustable | No |
| Through-Hole Diameter (Decimal Inch) | 18.1100 |
| Chuck Diameter (Decimal Inch) | 40.0000 |
| Chuck Diameter (Inch) | 40 |
| Minimum Jaw Capacity (Inch) | 9.8400 |
| Minimum Jaw Capacity (mm) | 9.84 |
| Maximum Jaw Capacity (mm) | 45.28 |
| Maximum Jaw Capacity (Inch) | 45.2800 |
| Jaw Height (Decimal Inch) | 4.4090 |
| Maximum Rpm | 300 |
| Mount Type | Plain Back |
| TIR Repeatability (Decimal Inch) | 0.0071 |
| Number Of Jaws | 3 |
| Contents | (1) Set of Master & Hard Top Reversible Jaws; Adapter Mounting Bolts; Eye Bolts; Chuck Wrench; Hex Keys |
