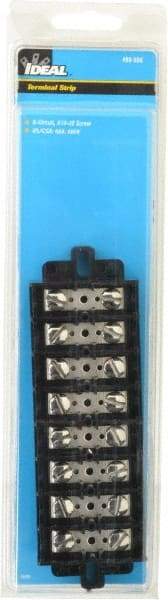

Ideal - 8 Poles, 600 Volt, 60 Amp, -40 to 266°F, Polyester Thermoplastic, Polyester Thermoplastic Multipole Terminal Block - Nickle Plated Brass, 22 to 6 AWG Compatibility, 1-1/4 Inch High
Item #: 66053497
Brand: Ideal
Model #: 89-508
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Block Type | Multi-Pole |
| Voltage | 600 V |
| Amperage | 60 |
| Number of Poles | 8 |
| Number of Rows | 6 |
| Maximum Compatible Wire Size (AWG) | 6 |
| Minimum Compatible Wire Size (AWG) | 22 |
| Contact Material | Nickle-plated Brass |
| Block Material | Polyester Thermoplastic |
| Pin Spacing | 5/8 |
| Block Color | Black |
| Maximum Operating Temperature (F) | 266 |
| Minimum Operating Temperature (F) | -40 |
| Overall Height (Decimal Inch) | 1-1/4 |
| Overall Height (mm) | 1-1/2 |
| Overall Length (Decimal Inch) | 6-1/4 |
| Standards Met | CSA Certified; CSA LR15364; RoHS Compliant; RU Listed; UL File E82048; UL Listed |
