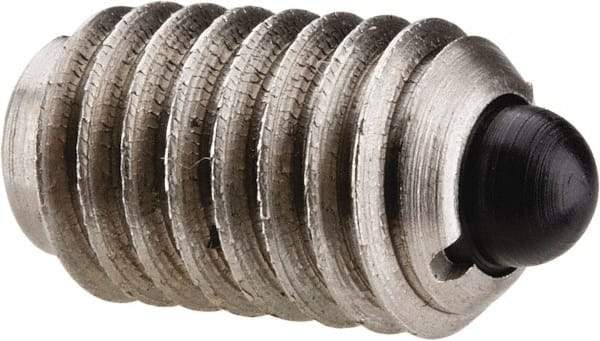

Gibraltar - 3/8-16, 5/8" Thread Length, 0.11" Plunger Projection, Stainless Steel Threaded Spring Plunger - 0.186" Max Plunger Diam, 0.625" Plunger Length, 4.5 Lb Init End Force, 18.5 Lb Final End Force
Item #: 65219610
Brand: Gibraltar
Exact Tooling IR#: 04
Features and Benefits
Nylon is a lightweight, nonconductive material that is resistant to impact, wear and abrasion. It is ideal for electrical applications or where corrosion is a concern.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Thread Size | 3/8-16 |
| Thread Length (Decimal Inch) | 0.6250 |
| Nose Material | Nylon |
| Body Material | Stainless Steel |
| Maximum Plunger Diameter (Decimal Inch) | 0.1860 |
| Plunger Projection (Decimal Inch) | 0.1100 |
| Locking Element | Yes |
| Body Length (Decimal Inch) | 0.6250 |
| Plunger Length Type | Stubby |
| Plunger Length (Decimal Inch) | 0.6250 |
| Final End Force (Lb.) | 18.50 |
| Initial End Force (Lb.) | 4.50 |
