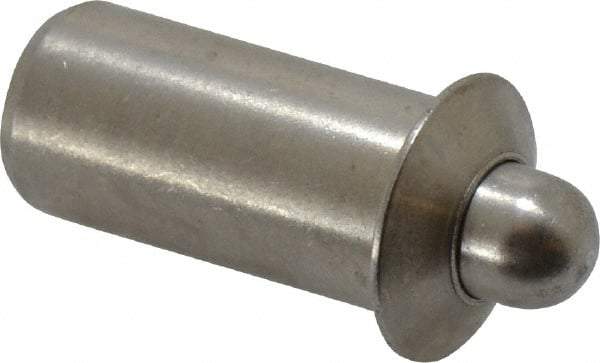

Vlier - 0.786" Body Len x 3/8" Body Diam, 0.234" Plunger Diam, 2.5 Lb Init to 7 Lb Final End Force, 0.786" Len Under Flange, Stainless Steel Press Fit Spring Plunger - 1/2" Flange Diam, 0.096" Flange Thickness, 0.882" Plunger Len, 3/16" Plunger Projection
Item #: 65155566
Brand: Vlier
Model #: SPFP57
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Body Diameter (Decimal Inch) | 0.3750 |
| Body Length (Decimal Inch) | 0.7860 |
| Length Under Flange (Decimal Inch) | 0.7860 |
| Plunger Diameter (Decimal Inch) | 0.2340 |
| Initial End Force (Lb.) | 2.50 |
| Final End Force (Lb.) | 7.00 |
| Locking Element | No |
| Flange Diameter (Decimal Inch) | 0.5000 |
| Flange Thickness (Decimal Inch) | 0.0960 |
| Plunger Length (Decimal Inch) | 0.8820 |
| Plunger Projection (Decimal Inch) | 0.1870 |
| Body Material | Stainless Steel |
| Nose Material | Stainless Steel |
