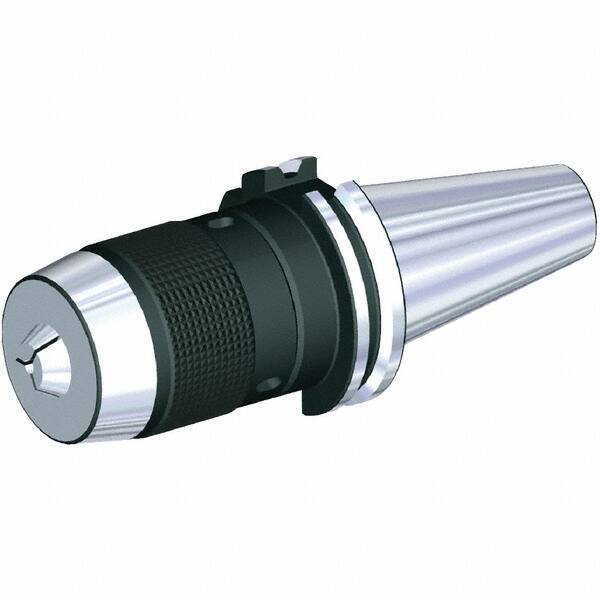

Kennametal - DIN69871-40, 1 to 13mm Capacity, Integral Shank Drill Chuck - Keyed, Taper Shank, 50.5mm Sleeve Diam, 90mm Open Length
Item #: 64849219
Brand: Kennametal
Model #: 3583505
Exact Tooling IR#: 04
Features and Benefits
Integral shank drill chucks are designed with the arbor (shank) built into the drill chuck, providing greater rigidity and concentricity than a press-fit tapered mount.
Keyed chucks are engineered to either loosen or tighten the hold on a tool by using a key. Keyed chucks offer the advantage of applying additional torque on the bit when slippage is a concern during heavy-duty applications.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| Maximum Drill Chuck Capacity (mm) | 13.00 |
| Maximum Drill Chuck Capacity (Decimal Inch) | 0.5118 |
| Minimum Drill Chuck Capacity (mm) | 1.00 |
| Minimum Drill Chuck Capacity (Decimal Inch) | 0.0394 |
| Mount Type | Integral Shank |
| Mounting Size | DIN69871-40 |
| Key Style | Keyed |
| Material | Steel |
| Closed Length (mm) | 102.30 |
| Closed Length (Decimal Inch) | 4.0276 |
| Shank Type | Taper Shank |
| Open Length (mm) | 90.00 |
| Open Length (Decimal Inch) | 3.5433 |
| Sleeve Diameter (mm) | 50.50 |
| Sleeve Diameter (Decimal Inch) | 1.9882 |
