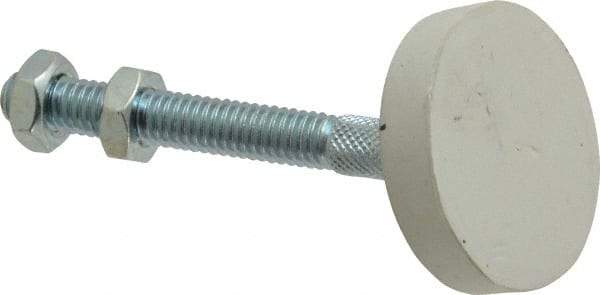

De-Sta-Co - 5/16-18 Carbon Steel Swivel Foot Tip Clamp Spindle Assembly - 49.28mm Thread Length, 75.7mm OAL, Flat Tip Cap, 1-1/2" Tip Surface Diam, Use with Toggle Clamps
Item #: 64825540
Brand: De-Sta-Co
Model #: 507209
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Application | Toggle Clamps |
| Spindle Material | Carbon Steel |
| Thread Size | 5/16-18 |
| Thread Length (Decimal Inch) | 1.9400 |
| Thread Length (mm) | 49.28 |
| Overall Length (mm) | 75.70 |
| Overall Length (Decimal Inch) | 2.9803 |
| Tip Type | Swivel Foot |
| Tip Surface Diameter (mm) | 38.10 |
| Tip Surface Diameter (Decimal Inch) | 1.5000 |
| Pad Material | Neoprene |
| Tip Cap Material | Neoprene |
| Tip Cap Shape | Flat Tip |
| Swivel Angle | 24.00 |
| Tip Maximum Diameter (mm) | 38.10 |
| Tip Maximum Diameter (Decimal Inch) | 1.5000 |
| Tip Cap Hardness (Durometer) | 70-80A |
| Nut Height (Decimal Inch) | 0.1900 |
| Nut Height (mm) | 4.83 |
| Minimum Operating Temperature (F) | -40.00 |
| Maximum Operating Temperature (F) | 220.00 |
| Includes | Jam Nuts |
