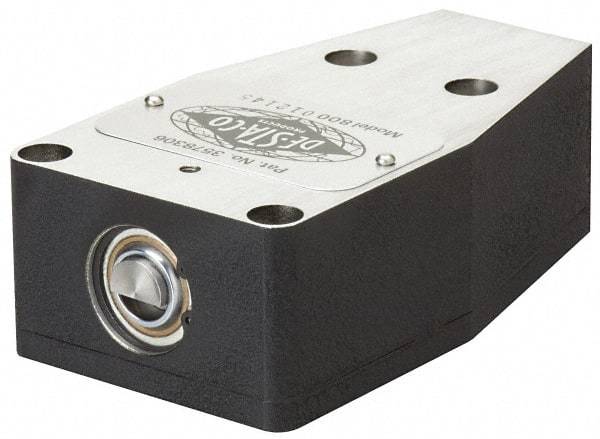

De-Sta-Co - 1,200 Lb Holding Capacity, 0.1575" Max Opening Capacity, 4.83 bar Clamping Pressure, Air Hold Down Clamp - 1/2" Arm Length, 4.81" Clamp Length, 2.72" Clamp Width, 1.63" Clamp Height, Mounting Holes
Item #: 64825482
Brand: De-Sta-Co
Model #: 800-E
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Operation Type | Air |
| Holding Capacity (N) | 544.00 |
| Holding Capacity (Lb.) | 1200.00 |
| Maximum Opening Capacity (mm) | 4.00 |
| Maximum Opening Capacity (Decimal Inch) | 0.1575 |
| Clamping Pressure (psi) | 150.00 |
| Clamping Pressure (bar) | 4.83 |
| Clamp Length (mm) | 122.80 |
| Clamp Length (Decimal Inch) | 4.8100 |
| Arm Length (mm) | 12.70 |
| Arm Length (Decimal Inch) | 0.5000 |
| Clamp Width (mm) | 69.10 |
| Clamp Width (Decimal Inch) | 2.7200 |
| Clamp Height (mm) | 41.40 |
| Clamp Height (Decimal Inch) | 1.6300 |
| Mounting Type | Mounting Holes |
