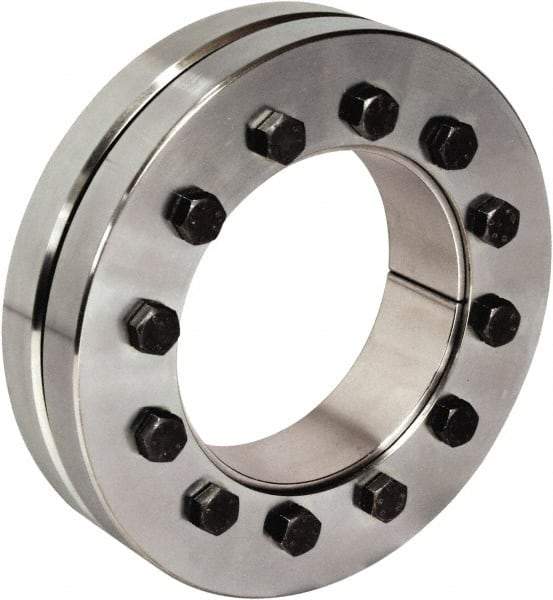

Climax Metal Products - M10 Thread, 125mm Bore Diam, 215mm OD, Shaft Locking Device - 12 Screws, 493,107 Lb Axial Load, 215mm OAW, 1.654" Thrust Ring Width, 19,262 Ft/Lb Max Torque
Item #: 64650294
Brand: Climax Metal Products
Model #: C733M-125
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | M10 |
| Bore Diameter (Decimal Inch) | 4.9210 |
| Bore Diameter (mm) | 125.000 |
| Outside Diameter (Decimal Inch) | 8.4650 |
| Outside Diameter (mm) | 215.0000 |
| Thrust Ring Width (Decimal Inch) | 1.654 |
| Overall Width (Decimal Inch) | 8.4650 |
| Overall Width | 215.0000 |
| Axial Load Lbs (Pounds) | 493107 |
| Maximum Torque (Ft/Lb) | 19262 |
| Number of Screws | 12.000 |
| Screw Seating Torque (In/Lb) | 528.000 |
