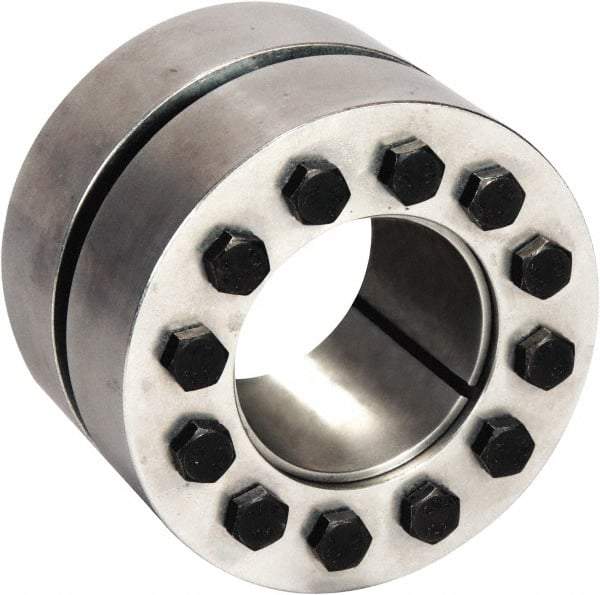

Climax Metal Products - M10 Thread, 2-11/16" Bore Diam, 148mm OD, Shaft Locking Device - 12 Screws, 76,773 Lb Axial Load, 5.826" OAW, 3.15" Thrust Ring Width, 8,597 Ft/Lb Max Torque
Item #: 64650286
Brand: Climax Metal Products
Model #: C600E-268
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | M10 |
| Bore Diameter (Inch) | 2-11/16 |
| Bore Diameter (Decimal Inch) | 2.6875 |
| Outside Diameter (Decimal Inch) | 5.8260 |
| Outside Diameter (mm) | 148.0000 |
| Thrust Ring Width (Decimal Inch) | 3.150 |
| Overall Width (Decimal Inch) | 5.8260 |
| Axial Load Lbs (Pounds) | 76773 |
| Maximum Torque (Ft/Lb) | 8597 |
| Number of Screws | 12.000 |
| Screw Seating Torque (In/Lb) | 528.000 |
