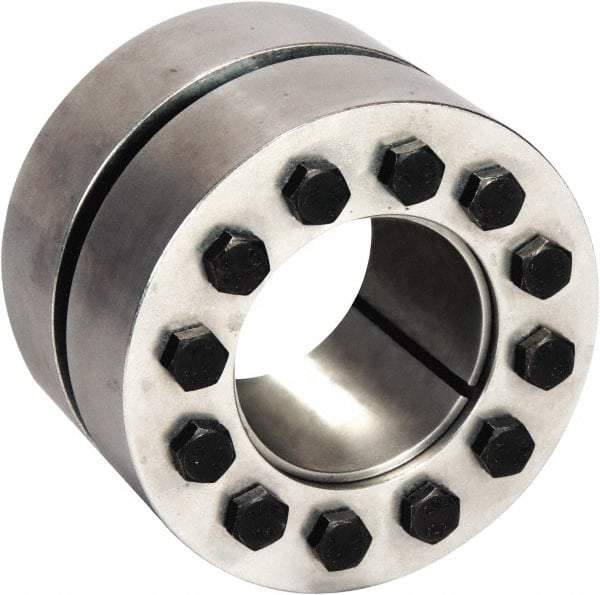

Climax Metal Products - M12 Thread, 3-15/16" Bore Diam, 197mm OD, Shaft Locking Device - 15 Screws, 139,191 Lb Axial Load, 7.756" OAW, 4.488" Thrust Ring Width, 22,836 Ft/Lb Max Torque
Item #: 64650120
Brand: Climax Metal Products
Model #: C600E-393
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | M12 |
| Bore Diameter (Inch) | 3-15/16 |
| Bore Diameter (Decimal Inch) | 3.9375 |
| Outside Diameter (Decimal Inch) | 7.7560 |
| Outside Diameter (mm) | 197.0000 |
| Thrust Ring Width (Decimal Inch) | 4.488 |
| Overall Width (Decimal Inch) | 7.7560 |
| Axial Load Lbs (Pounds) | 139191 |
| Maximum Torque (Ft/Lb) | 22836 |
| Number of Screws | 15.000 |
| Screw Seating Torque (In/Lb) | 888.000 |
