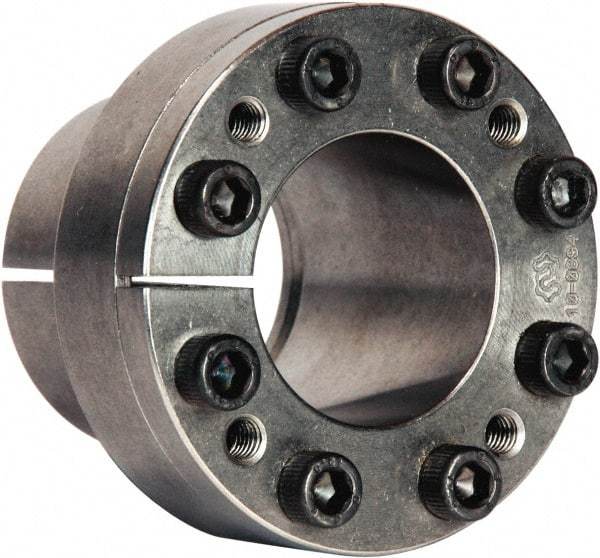

Climax Metal Products - M6 Thread, 32mm Bore Diam, 43mm OD, Shaft Locking Device - 8 Screws, 10,024 Lb Axial Load, 2.559" OAW, 0.984" Thrust Ring Width, 526 Ft/Lb Max Torque
Item #: 64642887
Brand: Climax Metal Products
Model #: C170M-32X43
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | M6 |
| Bore Diameter (Decimal Inch) | 1.2600 |
| Bore Diameter (mm) | 32.000 |
| Outside Diameter (Decimal Inch) | 1.6930 |
| Outside Diameter (mm) | 43.0000 |
| Thrust Ring Width (Decimal Inch) | 0.984 |
| Overall Width (Decimal Inch) | 2.5590 |
| Axial Load Lbs (Pounds) | 10024 |
| Maximum Torque (Ft/Lb) | 526 |
| Number of Screws | 8.000 |
| Contact Pressure on Hub (psi) | 15957.000 |
| Contact Pressure on Shaft (psi) | 21443.000 |
| Screw Seating Torque (In/Lb) | 156.000 |
