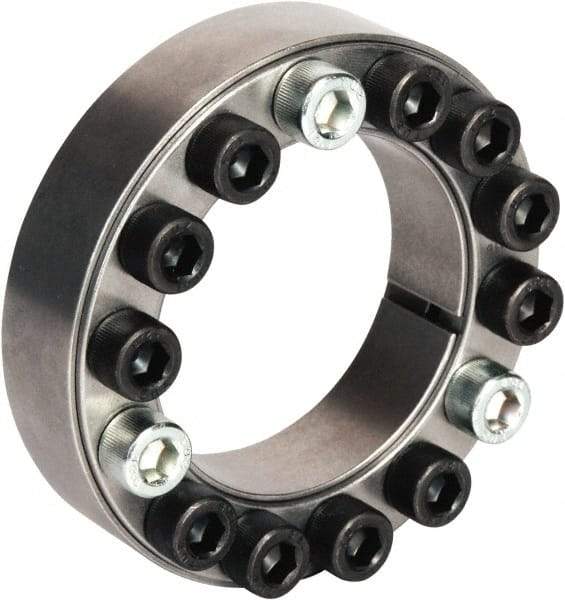

Climax Metal Products - M12 Thread, 3-7/8" Bore Diam, 5.709" OD, Shaft Locking Device - 14 Screws, 53,513 Lb Axial Load, 5.709" OAW, 1.024" Thrust Ring Width, 8,640 Ft/Lb Max Torque
Item #: 64642606
Brand: Climax Metal Products
Model #: C200E-387
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | M12 |
| Bore Diameter (Inch) | 3-7/8 |
| Bore Diameter (Decimal Inch) | 3.8750 |
| Outside Diameter (Decimal Inch) | 5.7090 |
| Thrust Ring Width (Decimal Inch) | 1.024 |
| Overall Width (Decimal Inch) | 5.7090 |
| Axial Load Lbs (Pounds) | 53513 |
| Maximum Torque (Ft/Lb) | 8640 |
| Number of Screws | 14.000 |
| Contact Pressure on Hub (psi) | 24291.000 |
| Contact Pressure on Shaft (psi) | 35786.000 |
| Screw Seating Torque (In/Lb) | 1068.000 |
