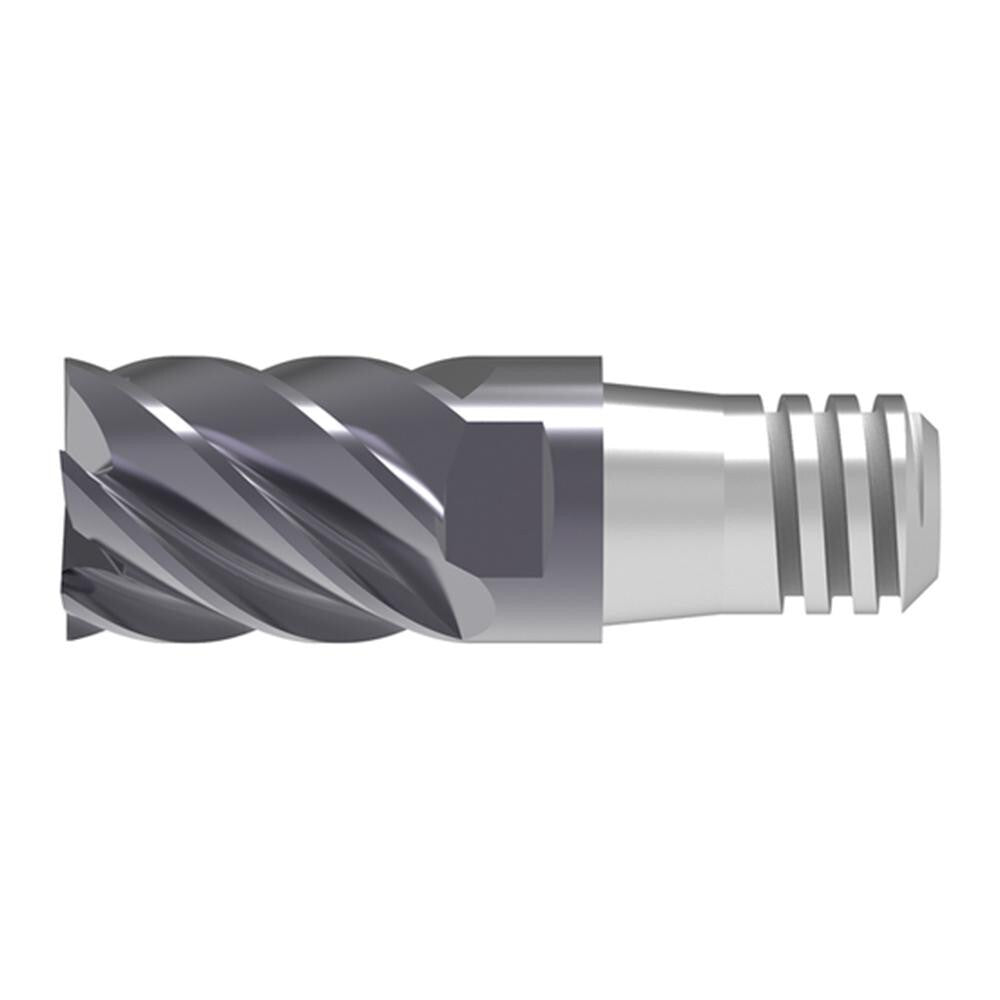

Square End Mill Heads; Mill Diameter (Decimal Inch): 0.6400; Mill Diameter (mm): 16.00; Length of Cut (mm): 20.0000; Connection Type: SAM
Item #: 02969814
Brand: WNT
Model #: 52863160
Product Specifications
| Mill Diameter (Decimal Inch) | 0.6400 |
| Mill Diameter (mm) | 16.00 |
| Length of Cut (mm) | 20.0000 |
| Connection Type | SAM |
| Overall Length (mm) | 45.3000 |
| Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Center Cutting | No |
| Flute Type | Variable |
| Helix Angle | 49 |
| Series/List | MUC |
| Neck Diameter (Decimal Inch) | 0.6320 |
| Variable Helix | Yes |
| End Type | Square |
| Chipbreaker | None |
| Shank Type | Modular Connection |
| Extended Reach | No |
| UNSPSC Code | 27112803 |
| Single Or Double End | Single |
| Variable Index | No |
| Number Of Flutes | 6 |
| Finish Coating | Ti1100 |
