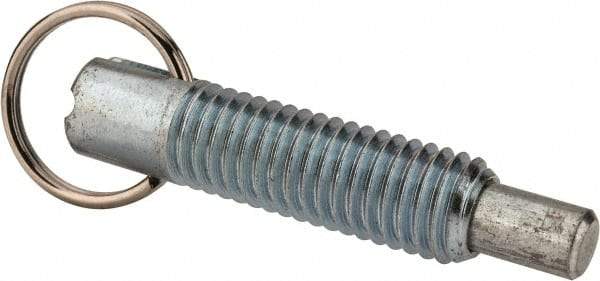

Gibraltar - 1/2-13, 1.4" Thread Length, 5/16" Plunger Diam, 1/2" Plunger Projection, 2.5 Lb Init to 5 Lb Final End Force, Steel Locking Pull Ring Plunger - 1.4" Len Under Head, 2" Body Len, 1.26" Ring Diam, 2" Plunger Len, 0.6" Head Height
Item #: 64499882
Brand: Gibraltar
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | 1/2-13 |
| Thread Length (Decimal Inch) | 1.4000 |
| Plunger Type | Locking |
| Body Length (Decimal Inch) | 2.0000 |
| Length Under Head (Decimal Inch) | 1.4000 |
| Plunger Projection (Decimal Inch) | 0.5000 |
| Plunger Diameter (Decimal Inch) | 0.3120 |
| Locking Element | No |
| Initial End Force (Lb.) | 2.50 |
| Final End Force (Lb.) | 5.00 |
| Plunger Length (Decimal Inch) | 2.0000 |
| Ring Diameter (Decimal Inch) | 1.2600 |
| Head Height (Decimal Inch) | 0.6000 |
| Material | Steel |
