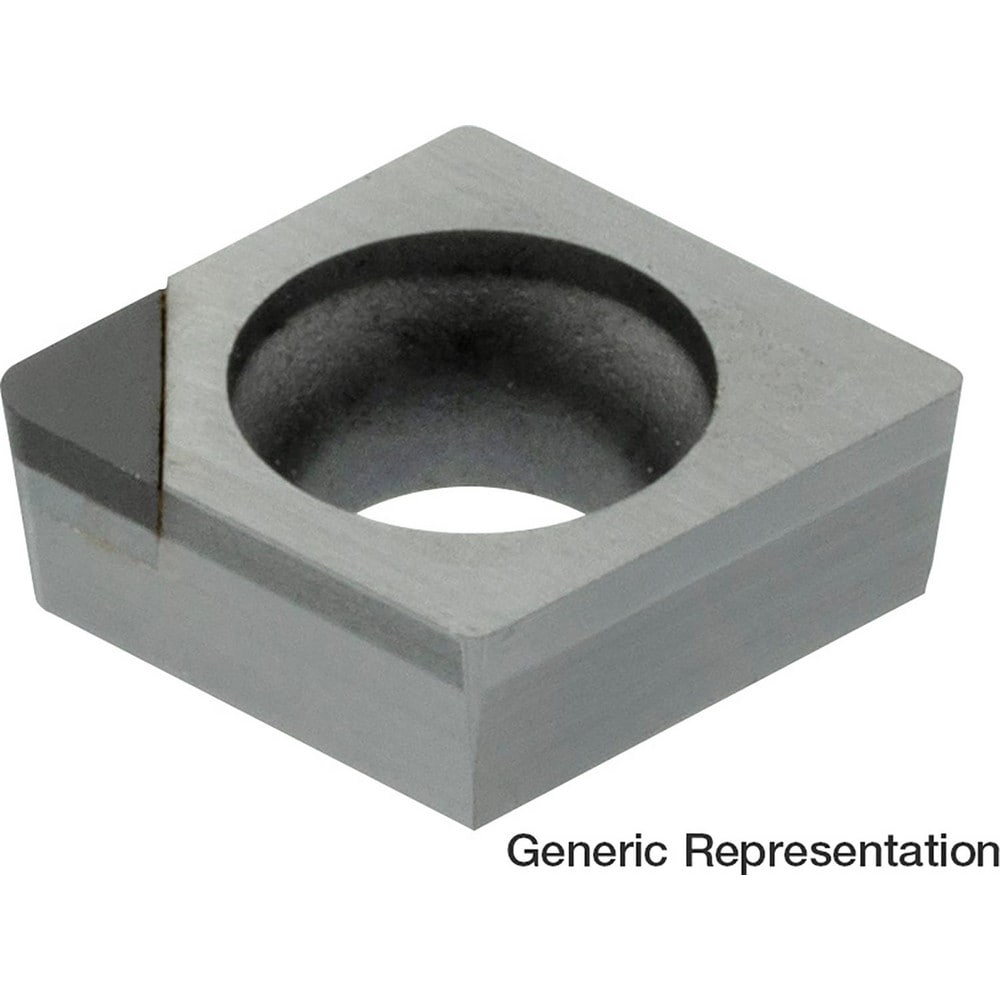

Brand: Sumitomo / Part #: 1655FED
Item #: 93289981
Brand: Sumitomo
Model #: 1655FED
Product Specifications
| Insert Style | CCMA |
| Insert Shape Code | C |
| Insert Size Code | 102 |
| Insert Shape | Diamond |
| Coating/Finish | Uncoated |
| Manufacturer Grade | DA90 |
| Corner Radius (mm) | 0.20 |
| Insert Material | Polycrystalline Cubic Boron Nitride (PCBN) |
| Hole Diameter (Mm) ( - 0 Decimals) | 1.9000 |
| Maximum Depth of Cut (mm) | 0.50 |
| Inscribed Circle (mm) | 3.50 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness | 1.40 |
| Clearance Code | C |
| Tolerance Code | M |
| Relief Angle | 7.000 |
| Series | DA90 |
| Manufacturers Catalog Number | NFCCMA03X102-DA90 |
| Cutting Direction | Neutral |
| Chip Breaker | None |
| Width (Mm - 2 Decimals) | 1.10 |
