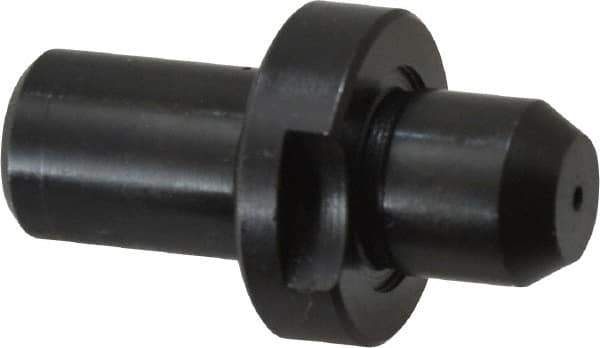

Gibraltar - 0.4834" Nose Diam, 1/2" Nose Length, 7/8" Collar Diam, Slip Fit Round Straight Locating Pin - Low Carbon Steel, 1/2" Tail Diam, 1-1/2" OAL, +0.0000" Tolerance
Item #: 64215916
Brand: Gibraltar
Exact Tooling IR#: 04
Features and Benefits
Low carbon steel offers a high degree of corrosion resistance and is malleable. It is not as hard as strong as medium or high carbon steels.
| Product Specifications | |
|---|---|
| Nose Diameter (Decimal Inch) | 0.4834 |
| Nose Length (Inch) | 1/2 |
| Collar Diameter (Inch) | 7/8 |
| Nose Shape | Slip Fit Round |
| Relieved | No |
| Overall Length (Inch) | 1-1/2 |
| Material | Low Carbon Steel |
| Tail Diameter (Inch) | 1/2 |
| Center Hole To Radius (Inch) | 41/64 |
| Chamfer Length (Inch) | 1/8 |
| Tolerance (Decimal Inch) | +0.0000 |
