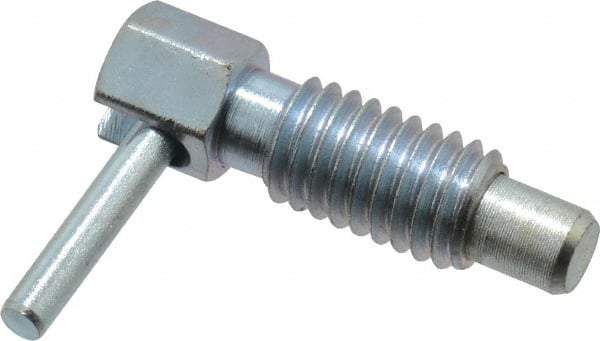

Gibraltar - 3/8-16, 0.62" Thread Length, 1/4" Plunger Diam, 0.25 Lb Init to 1.25 Lb Final End Force, Steel Locking L Handle Plunger - 1.13" Body Length, 3/4" Length Under Head, 0.3" Plunger Projection
Item #: 64169634
Brand: Gibraltar
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | 3/8-16 |
| Thread Length (Decimal Inch) | 0.6200 |
| Plunger Type | Locking |
| Body Length (Decimal Inch) | 1.1300 |
| Length Under Head (Decimal Inch) | 0.7500 |
| Plunger Projection (Decimal Inch) | 0.3000 |
| Plunger Diameter (Decimal Inch) | 0.2500 |
| Locking Element | No |
| Material | Steel |
| Handle Length (Decimal Inch) | 0.5600 |
| Initial End Force (Lb.) | 0.25 |
| Final End Force (Lb.) | 1.25 |
| Plunger Length (Decimal Inch) | 1.1300 |
| Head Height (Decimal Inch) | 0.3800 |
| Handle Diameter (Decimal Inch) | 0.1400 |
| Hex Size (Decimal Inch) | 0.3800 |
| Length Between Head And Thread (Decimal Inch) | 0.130 |
