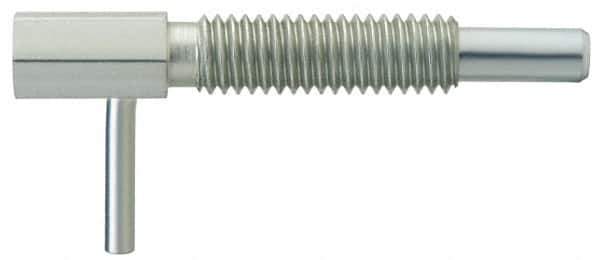

Gibraltar - M12x1.75, 1.11" Thread Length, 7mm Plunger Diam, 4.5 N Init to 22.3 N Final End Force, Steel Locking L Handle Plunger - 54mm Body Length, 32mm Length Under Head, 19mm Plunger Projection
Item #: 64168511
Brand: Gibraltar
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | M12x1.75 |
| Thread Length (mm) | 28.19 |
| Thread Length (Decimal Inch) | 1.1100 |
| Plunger Type | Locking |
| Body Length (mm) | 54.00 |
| Length Under Head (mm) | 32.00 |
| Plunger Projection (mm) | 19.00 |
| Plunger Diameter (mm) | 7.00 |
| Locking Element | No |
| Material | Steel |
| Handle Length (mm) | 25.40 |
| Initial End Force (N) | 4.50 |
| Final End Force (N) | 22.30 |
| Plunger Length (Decimal Inch) | 2.1000 |
| Plunger Length (mm) | 53.34 |
| Head Height (mm) | 21.34 |
| Head Height (Decimal Inch) | 0.8400 |
| Handle Diameter (mm) | 4.80 |
| Hex Size (mm) | 12.00 |
| Length Between Head And Thread (mm) | 3.80 |
