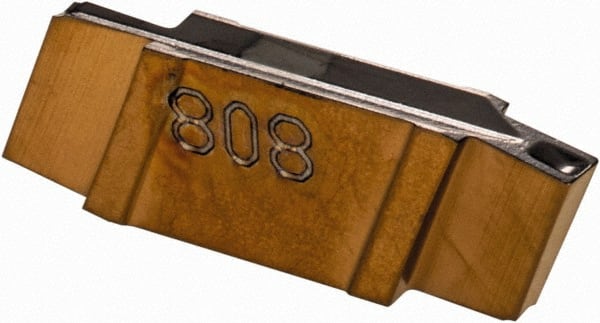

Grooving Insert: GIG157015G IC808, Solid Carbide AlTiN, TiAlN & TiN Finish, Neutral, 1.57 mm Cutting Width, 2.69 mm Max Depth, Series Cut-Grip
Item #: 63976401
Brand: Iscar
Model #: 6404361
Product Specifications
| Insert Style | GIG |
| Insert Size Code | 157015 |
| Insert Size | 157015 |
| Insert Material | Solid Carbide |
| Material Grade | Submicron |
| Manufacturer Grade | IC808 |
| Cutting Width (Decimal Inch) | 0.0620 |
| Cutting Width (mm) | 1.57 |
| Maximum Depth of Cut (Decimal Inch) | 0.1060 |
| Maximum Depth of Cut (mm) | 2.69 |
| Insert Holding Method | Self Grip |
| Cutting Height (mm) | 5.00 |
| Insert Hand | Neutral |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.1000 to 0.1500 |
| Cutting Height (Decimal Inch) | 0.1970 |
| Corner Radius (mm) | 0.15 |
| Corner Radius (Decimal Inch) | 0.0060 |
| Maximum Depth Of Cut Range (mm) | 2.00 to 3.00 |
| Rake | Positive |
| Multi-use Tool | No |
| Cutting Tool Application | Grooving; Turning; Parting |
| Series | Cut Grip |
| Coating Process | PVD |
| Rake Angle | 7.00 |
| Overall Length (Decimal Inch) | 0.6020 |
| Overall Length (mm) | 15.29 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M |
| Iso Code | GIG 1.57-0.15 |
| Standards | ISO 13399 |
| Manufacturers Catalog Number | GIG 1.57-0.15 |
| Chip Breaker | G |
| Full Radius | No |
| Coating/Finish | AlTiN; TiN; TiAlN |
| Single Or Double End | Double |
 | |
| MSC Part # | 63976401 |
| Mfr Part # | 6404361 |
