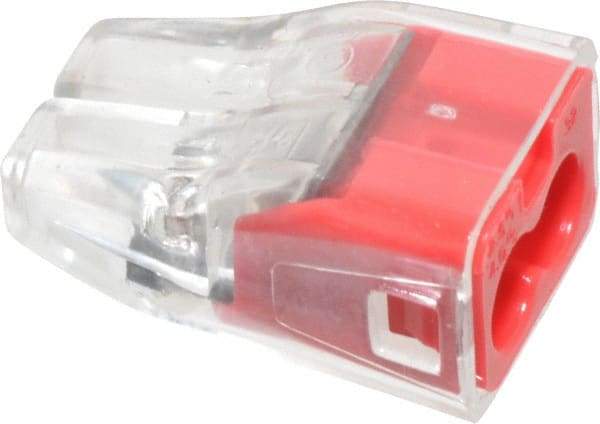

Ideal - 2 Port, 18 to 12 AWG Compatible, Push-In Wire Connector - 0.78" OAL x 0.52" OAW x 0.38" OAH, Red
Item #: 63912646
Brand: Ideal
Model #: 30-1032J
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connector Type | Push-In Wire Connector |
| Compatible Wire Size (AWG) | 18-12 |
| Number of Ports | 2 |
| Connector Color | Red |
| Overall Length (mm) | 19.81 |
| Overall Length (Decimal Inch) | 0.7800 |
| Overall Width (mm) | 13.21 |
| Overall Width (Decimal Inch) | 0.5200 |
| Overall Height (Decimal Inch) | 0.3800 |
| Overall Height (mm) | 9.65 |
| Maximum Operating Temperature (F) | 221 |
| Standards Met | CSA C22.2 No. 188 Certified; UL 467; UL Listed 486C |
