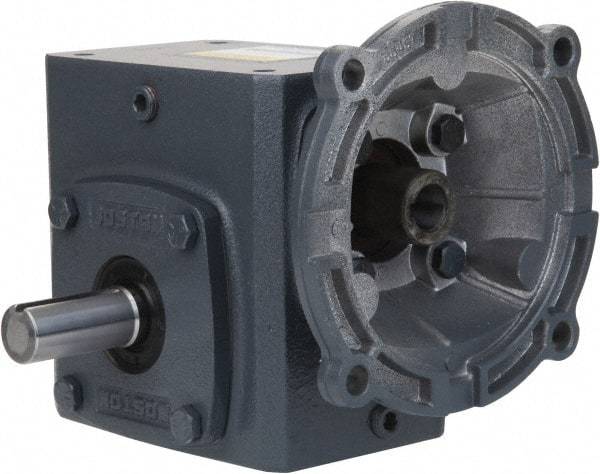

Boston Gear - 3 Centerline Distance, 40:1, 44 RPM Output, 1.78 Input Horsepower, 2,041 Lbs. Max Torque, Speed Reducer - Part No. F730-40-B7-G, 1-1/4" Shaft Diam, Single Shaft Left, 7/8" Bore, 8.88" High, 140TC NEMA
Item #: 63815146
Brand: Boston Gear
Model #: 60715
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Centerline Distance (Decimal Inch) | 3.000 |
| Ratio | 40:1 |
| NEMA Size | 140TC |
| PartNo | F730-40-B7-G |
| Shaft Style | Single Shaft Left |
| Bore Size (Decimal Inch) | 0.875 |
| Shaft Diameter (Decimal Inch) | 1.2500 |
| Height (Inch) | 8.88 |
| Maximum Torque Inch/Lbs (Pounds) | 2041.00 |
| Maximum Input Horsepower | 1.78 |
| Output RPM at 1750 Input | 44.0 |
