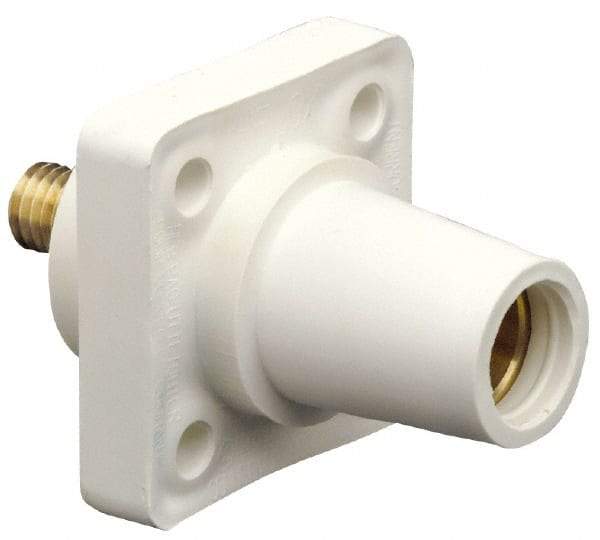

Leviton - 3R NEMA Rated, 600 Volt, 400 Amp, 2 to 4/0 AWG, Female, Threaded Stud, Panel Receptacle - 3.56 Inch Long, White
Item #: 63777866
Brand: Leviton
Model #: 16R24-UW
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connector Type | Panel Receptacle |
| End Style | Female |
| Termination Method | Threaded Stud |
| Amperage | 400 |
| Voltage | 600 V |
| Maximum Compatible Wire Size (AWG) | 4/0 |
| Minimum Compatible Wire Size (AWG) | 2 |
| Color | White |
| NEMA Rating | 3R |
| Overall Length (Decimal Inch) | 3.5600 |
| Overall Length (mm) | 90.60 |
| Standards Met | CSA 1691; CSA LR 76878-4 Certified; UL Listed 1691; UL Listed File E151429 |
