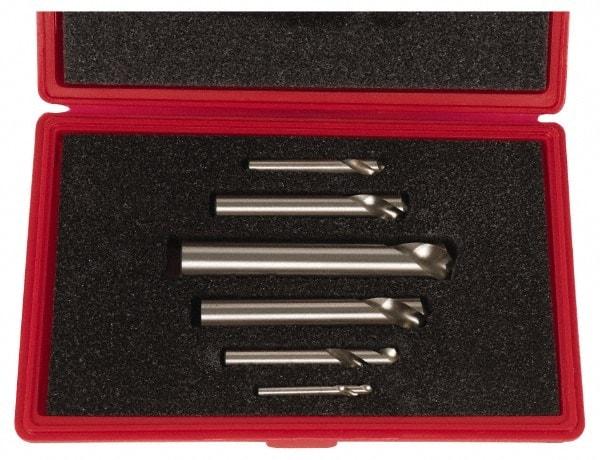

Cleveland - 1/4 to 1 Inch Body Diameter, 1 to 1-3/4 Inch Flute Length, 90° Point Angle, Spotting Drill Set - 4 to 8 Inch Overall Length, Series 2645, Bright Finish, High Speed Steel, Includes Six Spotting and Centering Drills
Item #: 63736995
Brand: Cleveland
Model #: C24187
Exact Tooling IR#: 04
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Minimum Body Diameter (Decimal Inch) | 0.2500 |
| Minimum Body Diameter (mm) | 6.35 |
| Minimum Body Diameter (Inch) | 1/4 |
| Drill Point Angle | 90 |
| Maximum Body Diameter (mm) | 25.40 |
| Maximum Body Diameter (Decimal Inch) | 1.0000 |
| Maximum Body Diameter (Inch) | 1 |
| Minimum Flute Length (Decimal Inch) | 1 |
| Maximum Flute Length (Decimal Inch) | 1.75 |
| Minimum Overall Length (mm) | 101.60 |
| Minimum Overall Length (Decimal Inch) | 4.00 |
| Maximum Overall Length (mm) | 203.20 |
| Maximum Overall Length (Decimal Inch) | 8.00 |
| Spotting Drill Material | High Speed Steel |
| Spotting Drill Finish/Coating | Bright |
| Body Diameter (Inch) | 1/4; 3/8; 1/2; 5/8; 3/4; 1 |
| Flute Length (Decimal Inch) | 1.0000; 1.1250; 1.5000; 1.6250; 1.7500 |
| Overall Length (mm) | 101.60; 127.00; 152.40; 180.98; (2) 203.20 |
| Overall Length (Decimal Inch) | 4.0000; 5.0000; 6.0000; 7.1250; 8.0000 |
| Length Designation | Long |
| Cutting Direction | Right Hand |
| Tool Application | Centering; Spotting |
| Insertable Cutter Head | No |
| Material Application | Alloy Tool Steel; Aluminum; Carbon Steel; Stainless Steel |
| Set Includes | (6) Spotting and Centering Drills |
| Number of Pieces | 6 |
| Storage Unit Type | Case |
| Storage Unit Material | Wood |
| Series/List | 2645 |
