Fowler - 2" Max Capacity, 90° Angle, Steel V-Block - 2-3/4" Long x 2" Wide x 2" High, Sold as Matched Pair
Item #: 63722029
Brand: Fowler
Model #: 52-475-555
Exact Tooling IR#: 04
Features and Benefits
V-blocks are used for holding cylindrical components for detecting and inspecting. They are designed with a 90-degree channel rotated 45-degrees from the sides, forming a V-shaped channel in the top. V-Blocks are commonly available in pairs. Some come with magnets for magnetic workholding applications.
| Product Specifications | |
|---|---|
| Type | V-Block |
| Sold As | Matched Pair |
| Overall Length (Inch) | 2-3/4 |
| Overall Width (Inch) | 2 |
| Overall Height (Inch) | 2 |
| V Angle | 90.00 |
| Maximum Capacity of V (Inch) | 2 |
| Material | Steel |
| Squareness Per 1 Inch (Decimal Inch) | 0.0002 |
| Parallelism (Decimal Inch) | 0.0002 |
| Magnetic | No |

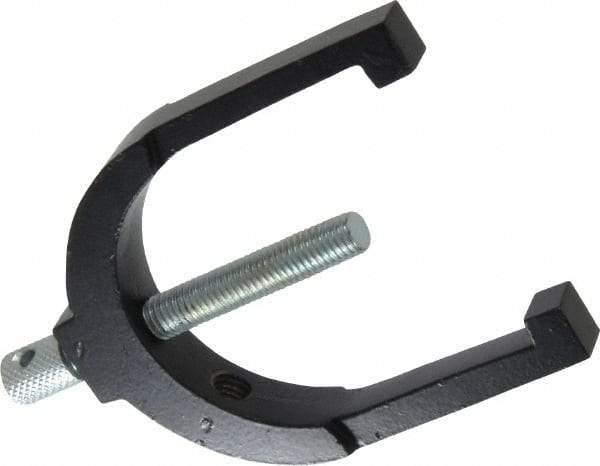

| Includes | (2) Clamps |
