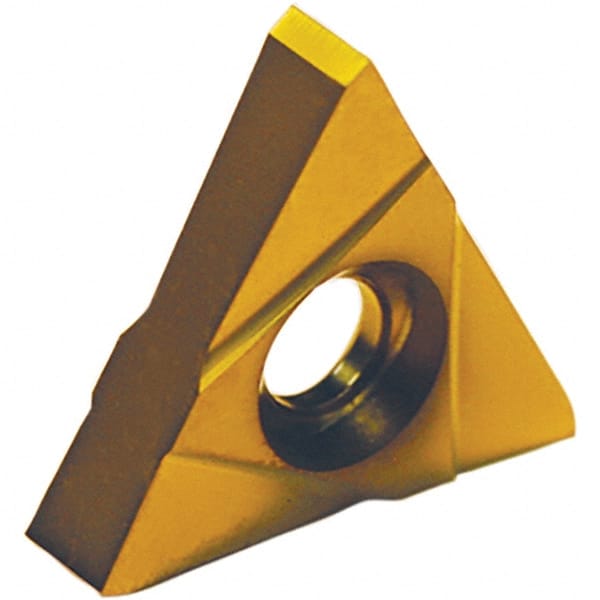

Grooving Insert: TNMC54 AC50, Solid Carbide AlTiN Finish, Neutral, 0.25″ Cutting Width, 0.275″ Max Depth, Series On-Edge
Item #: 63578637
Brand: Tool-Flo
Model #: C5325000AC50E
Product Specifications
| Insert Style | TNMC |
| Insert Size Code | 54NGW250 |
| Insert Size | 54 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AC50 |
| Cutting Width (Decimal Inch) | 0.2500 |
| Cutting Width (mm) | 6.35 |
| Maximum Depth of Cut (Decimal Inch) | 0.2750 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.2000 to 0.3000 |
| Multi-use Tool | No |
| Cutting Tool Application | Grooving |
| Series | On-Edge |
| Coating Process | PVD |
| Primary Workpiece Material | Steel |
| Iso Code | TNMC54NGW.250 |
| Manufacturers Catalog Number | TNMC 54 NG W.250 |
| Insert Thickness (Decimal Inch) | 0.2520 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Full Radius | No |
| Coating/Finish | AlTiN |
