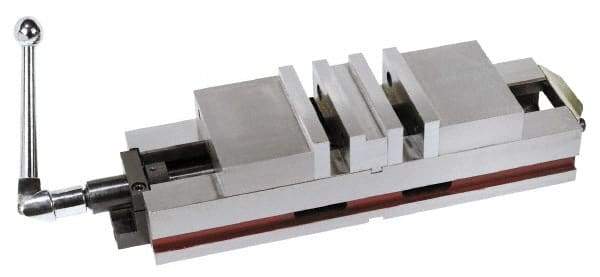

Interstate - 6-1/4" Jaw Width, 4" Jaw Opening Capacity, Horizontal Stationary Machine Vise - Manual Operation, 6,600 Lb Capacity, 2 Stations, 28-3/4" Long x 200mm High x 2" Deep, 2" Jaw Height, Cast Iron
Item #: 63328793
Brand: Interstate
Exact Tooling IR#: 04
Features and Benefits
Horizontal vises slide from side to side during milling operations.
Stationary vises are used for machining straight surfaces. They can be fastened to the machine at either a parallel or at a right angle.
| Product Specifications | |
|---|---|
| Jaw Width (Inch) | 6-1/4 |
| Jaw Opening Capacity (Inch) | 4 |
| Throat Depth (Inch) | 2 |
| Orientation Type | Horizontal |
| Number of Stations | 2 |
| Base Motion Type | Stationary |
| Operation Type | Manual |
| Jaw Height (mm) | 50.80 |
| Jaw Height (Inch) | 2 |
| Base Length (Inch) | 20-1/2 |
| Precision | Yes |
| Overall Length (mm) | 730.25 |
| Overall Length (Inch) | 28-3/4 |
| Base Width (Decimal Inch) | 6.3000 |
| Vise Material | Cast Iron |
| Load Capacity (Lb.) | 6600.00 |
| Overall Height (mm) | 200.00 |
| Jaw Style | Reversible |
