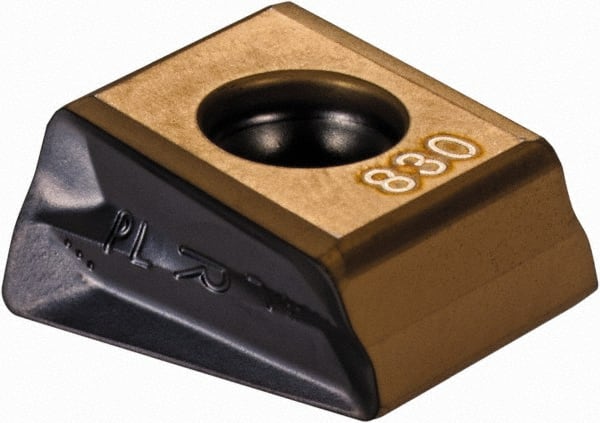

T490 LNHT 1306P Carbide Milling Insert TiAlN/TiN Finish, 0.544″ Long x 0.514″ Thick x 0.262″ Wide
Item #: 63124549
Brand: Iscar
Model #: 5606364
Product Specifications
| Insert Style | T490 LNHT |
| Insert Size Code | 1306 |
| Insert Size | 1306 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | IC830 |
| Thickness Range (Decimal Inch) | 0.5000 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.79 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Relief Angle | 0.00 |
| Series | HELITANG |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.4920 |
| Maximum Depth of Cut (mm) | 12.50 |
| Number Of Cutting Edges | 4 |
| Rake | Positive |
| Primary Workpiece Material | Superalloy |
| Primary Workpiece Material Code | P; S; M |
| Iso Code | T490 LNHT 1306PN-R-PL |
| Standards | ISO 13399 |
| Manufacturers Catalog Number | T490 LNHT 1306PN-R PL |
| Chip Breaker | PNRPL |
| Shape | Rectangle |
| Coating/Finish | Coated |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.2620 |
| Thickness (Decimal Inch - 4 Decimals) | 0.5140 |
| Length (Decimal Inch - 4 Decimals) | 0.5440 |
