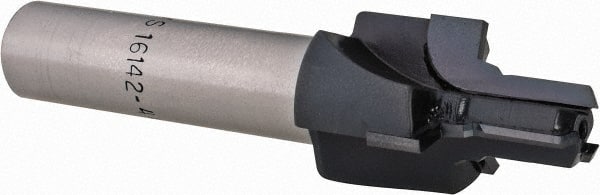

Scientific Cutting Tools - 7/16-20" Port, 0.838" Spotface Diam, 1/4" Tube Outside Diam, Reamer Pilot, Carbide Tipped Porting Tool
Item #: 72774961
Brand: Scientific Cutting Tools
Model #: MS16142-4RA
Features and Benefits
Carbide-tipped cuts faster than high speed steel. It is commonly used on ferrous and nonferrous materials including cast iron, steel and steel alloys.
| Product Specifications | |
|---|---|
| Port Standard Designation | MS 16142; SAE J1926; SAE J514 |
| Pilot Type | Reamer |
| Port Thread Size (Decimal Inch) | 0.4370-20 |
| Port Thread Size (Inch) | 7/16-20 |
| Tool Material | Carbide-Tipped |
| Tube Dash Number | 4.000 |
| Tube Outside Diameter Compatibility (Decimal Inch) | 0.250 |
| Tube Outside Diameter Compatibility (Inch) | 1/4 |
| Minimum Pilot Diameter (Decimal Inch) | 0.3880 |
| Maximum Pilot Diameter (Decimal Inch) | 0.4895 |
| Spotface Diameter (Decimal Inch) | 0.8380 |
| Pilot Length (Decimal Inch) | 0.4570 |
| Identification Groove | No |
| Workpiece Compatibility | Tubes |
| Finish/Coating | AlTiN+ |
| Head Length (Decimal Inch) | 1.2400 |
| Overall Length (Decimal Inch) | 3.1200 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Shank Length (Decimal Inch) | 1.8800 |
| Seal Angle | 12 |
| Thread Type | UNF |
| Flute Type | Straight |
| Number of Flutes | 3 |
