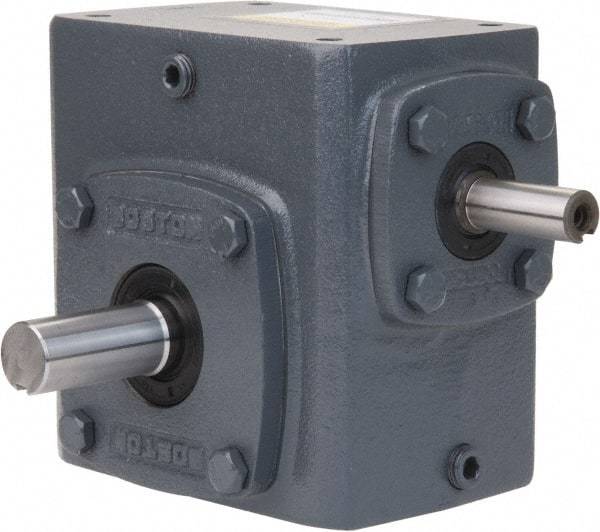

Boston Gear - 3-1/4 Centerline Distance, 20:1, 88 RPM Output, 4.63 Input Horsepower, 2,558 Lbs. Max Torque, Speed Reducer - Part No. 732-20-G, 7/8" Shaft Diam, Single Shaft Left, 7/8" Bore, 6-3/4" High
Item #: 62877410
Brand: Boston Gear
Model #: 732-20-G
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Centerline Distance (Decimal Inch) | 3.250 |
| Ratio | 20:1 |
| NEMA Size | 0 |
| PartNo | 732-20-G |
| Shaft Style | Single Shaft Left |
| Bore Size (Decimal Inch) | 0.8750 |
| Shaft Diameter (Decimal Inch) | 0.8750 |
| Height (Inch) | 6.75 |
| Maximum Torque Inch/Lbs (Pounds) | 2558.00 |
| Maximum Input Horsepower | 4.63 |
| Output RPM at 1750 Input | 88.0 |
