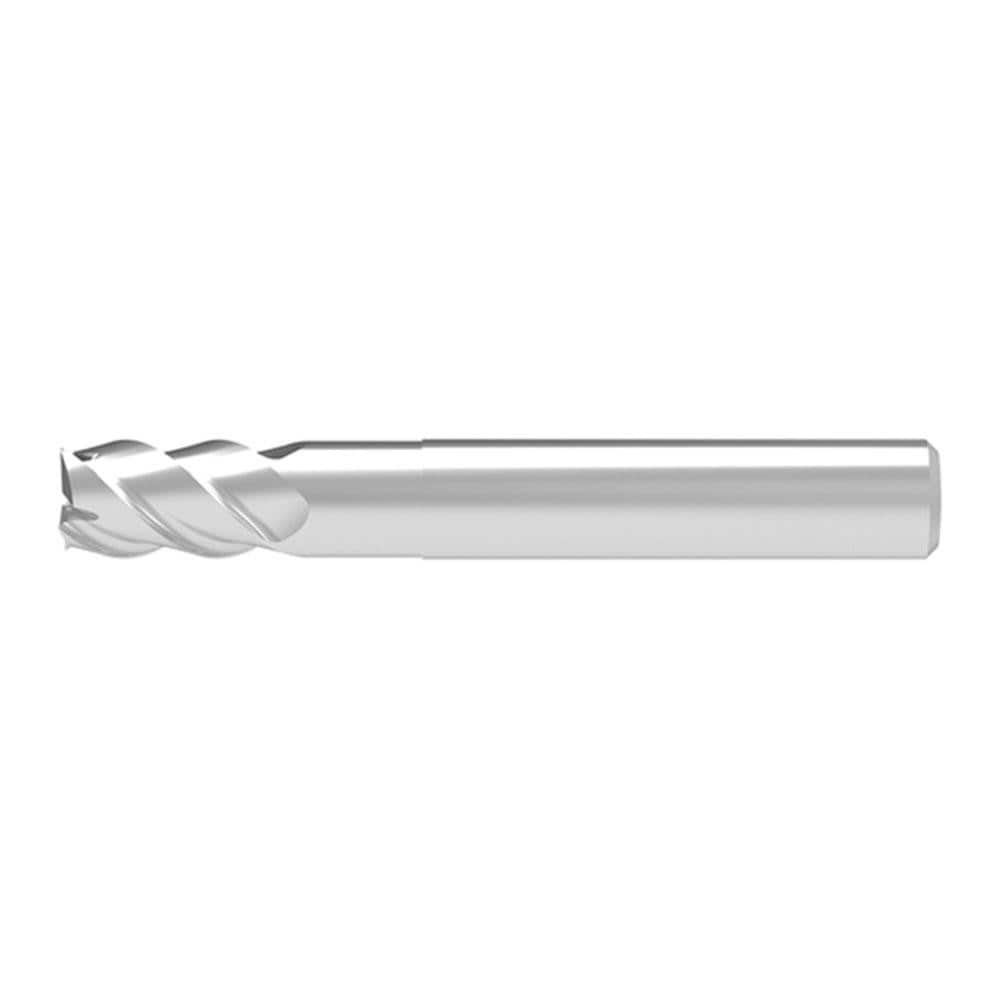

Square End Mill: 20.00 mm Dia, 32.00 mm LOC, 4 Flute, Solid Carbide
Item #: 75075572
Brand: WNT
Model #: 54630201
Product Specifications
| Mill Diameter (mm) | 20.00 |
| Mill Diameter (Decimal Inch) | 0.7874 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Length of Cut (mm) | 32.00 |
| Shank Diameter (mm) | 20.00 |
| Overall Length (mm) | 114.00 |
| Single Or Double End | Single |
| Coating/Finish Family | Bright/Uncoated |
| Centercutting | No |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 45 |
| Coating/Finish | Bright/Uncoated |
| Variable Helix | Yes |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Shank Type | Straight |
| Neck Diameter (mm) | 19.50 |
| Series | 54630 |
| System Of Measurement | Metric |
| UNSPSC Code | 27112803 |
| Mill Diameter (mm) | 20.00 |
| Mill Diameter (Decimal Inch) | 0.7874 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Length of Cut (mm) | 32.00 |
| Shank Diameter (mm) | 20.00 |
| Overall Length (mm) | 114.00 |
| Single Or Double End | Single |
| Coating/Finish Family | Bright/Uncoated |
| Centercutting | No |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 45 |
| Coating/Finish | Bright/Uncoated |
| Variable Helix | Yes |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Shank Type | Straight |
| Neck Diameter (mm) | 19.50 |
| Series | 54630 |
| System Of Measurement | Metric |
| UNSPSC Code | 27112803 |
| MSC Part # | 75075572 |
| Mfr Part # | 54630201 |
| Country of Origin Country of Origin is subject to change | France |
