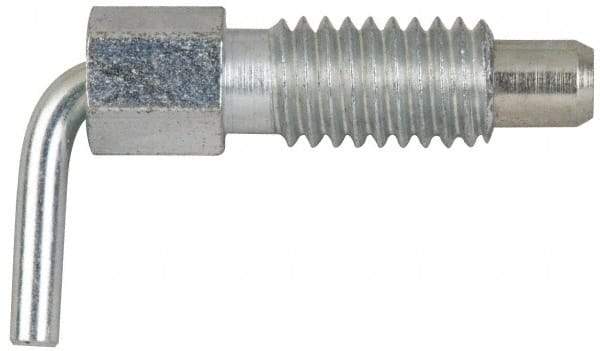

Vlier - 1/4-20, 1/2" Thread Length, 0.16" Plunger Diam, 0.12 Lb Init to 0.5 Lb Final End Force, Steel L Handle Plunger - 3/4" Body Length, 1/2" Length Under Head, Locking Element, 0.2" Plunger Projection
Item #: 62125208
Brand: Vlier
Model #: FRSN250P
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | 1/4-20 |
| Thread Length (Decimal Inch) | 0.5000 |
| Plunger Type | Non-Locking |
| Body Length (Decimal Inch) | 0.7500 |
| Length Under Head (Decimal Inch) | 0.5000 |
| Plunger Projection (Decimal Inch) | 0.2000 |
| Plunger Diameter (Decimal Inch) | 0.1600 |
| Locking Element | Yes |
| Material | Steel |
| Handle Length (Decimal Inch) | 0.4000 |
| Initial End Force (Lb.) | 0.12 |
| Final End Force (Lb.) | 0.50 |
| Plunger Length (Decimal Inch) | 0.7500 |
| Head Height (Decimal Inch) | 0.2500 |
| Handle Diameter (Decimal Inch) | 0.0900 |
| Hex Size (Decimal Inch) | 0.2500 |
