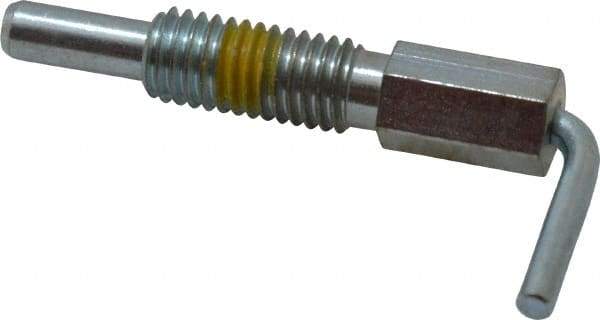

Vlier - 1/2-13, 1.1" Thread Length, 0.31" Plunger Diam, 1 Lb Init to 5 Lb Final End Force, Steel L Handle Plunger - 2.11" Body Length, 1-1/4" Length Under Head, Locking Element, 3/4" Plunger Projection
Item #: 62125083
Brand: Vlier
Model #: FRN500P
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | 1/2-13 |
| Thread Length (Decimal Inch) | 1.1000 |
| Plunger Type | Non-Locking |
| Body Length (Decimal Inch) | 2.1100 |
| Length Under Head (Decimal Inch) | 1.2500 |
| Plunger Projection (Decimal Inch) | 0.7500 |
| Plunger Diameter (Decimal Inch) | 0.3100 |
| Locking Element | Yes |
| Material | Steel |
| Handle Length (Decimal Inch) | 1.0000 |
| Initial End Force (Lb.) | 1.00 |
| Final End Force (Lb.) | 5.00 |
| Plunger Length (Decimal Inch) | 2.1100 |
| Head Height (Decimal Inch) | 0.8600 |
| Handle Diameter (Decimal Inch) | 0.1900 |
| Hex Size (Decimal Inch) | 0.5000 |
