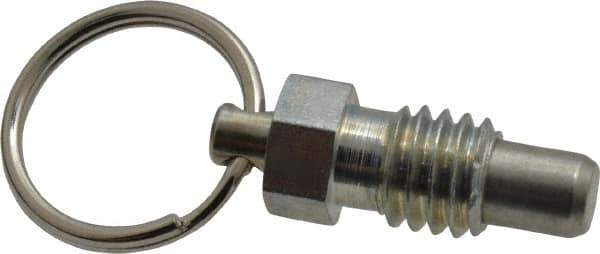

Vlier - 3/8-16, 0.31" Thread Length, 1/4" Plunger Diam, 0.28" Plunger Projection, 0.75 Lb Init to 3 Lb Final End Force, Steel Pull Ring Plunger - 0.44" Len Under Head, 0.63" Body Len, 3/4" Ring Diam, 0.82" Plunger Len, 0.38" Hex, 0.19" Head Height
Item #: 62124607
Brand: Vlier
Model #: PRSN375
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | 3/8-16 |
| Thread Length (Decimal Inch) | 0.3100 |
| Plunger Type | Non-Locking |
| Body Length (Decimal Inch) | 0.6300 |
| Length Under Head (Decimal Inch) | 0.4400 |
| Plunger Projection (Decimal Inch) | 0.2800 |
| Plunger Diameter (Decimal Inch) | 0.2500 |
| Locking Element | No |
| Initial End Force (Lb.) | 0.75 |
| Final End Force (Lb.) | 3.00 |
| Plunger Length (Decimal Inch) | 0.8200 |
| Ring Diameter (Decimal Inch) | 0.7500 |
| Head Height (Decimal Inch) | 0.1900 |
| Hex Size (Decimal Inch) | 0.3800 |
| Material | Steel |
