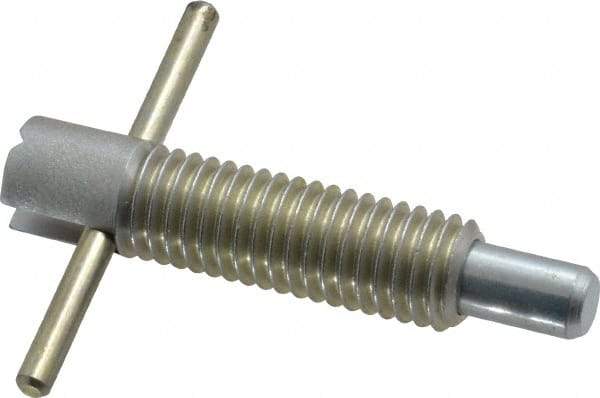

Vlier - 1/2-13 Thread, 2-1/2" Body Length, 1/2" Plunger Projection, 5/16" Plunger Diam, Steel, Locking T Handle Plunger - 1.4" Thread Length, 2" Handle Length, 2" Plunger Length, 2-1/2 Lb Initial End Force, 5 Lb Final End Force, Locking Element
Item #: 62124334
Brand: Vlier
Model #: FRT500P
Exact Tooling IR#: 04
Features and Benefits
Steel is made up of an iron and carbon. It offers high tensile strength and corrosion resistance, but may offer some vibration during an operation.
| Product Specifications | |
|---|---|
| Thread Size | 1/2-13 |
| Thread Length (Decimal Inch) | 1.4000 |
| Plunger Type | Locking |
| Body Length (Decimal Inch) | 2.5000 |
| Plunger Projection (Decimal Inch) | 0.5000 |
| Plunger Diameter (Decimal Inch) | 0.3120 |
| Locking Element | Yes |
| Initial End Force (Lb.) | 2.50 |
| Final End Force (Lb.) | 5.00 |
| Plunger Length (Decimal Inch) | 2.0000 |
| Handle Width/Diameter (Decimal Inch) | 0.1600 |
| Handle Length (Decimal Inch) | 2.0000 |
| Material | Steel |
