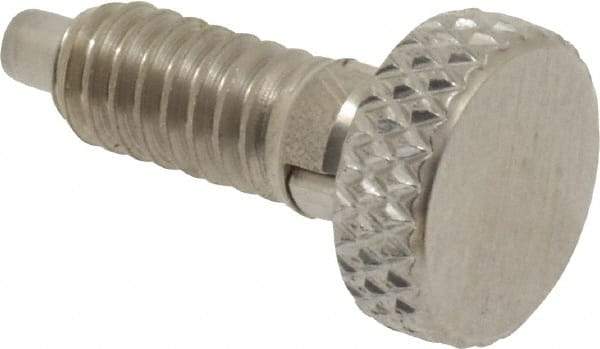

Vlier - 1/4-20, 0.4" Thread Length, 0.123 to 1/8" Max Plunger Diam, 0.5 Lb Init to 2 Lb Final End Force, Locking Knob Handle Plunger - Knurled Knob, 0.53" Length Under Head/Shoulder, 1/8" Plunger Projection
Item #: 62124235
Brand: Vlier
Model #: SSLF250P
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | 1/4-20 |
| Thread Length (Decimal Inch) | 0.4000 |
| Plunger Type | Locking |
| Knob Style | Knurled |
| Length Under Head/Shoulder (Decimal Inch) | 0.5300 |
| Plunger Projection (Decimal Inch) | 0.1250 |
| Maximum Plunger Diameter (Decimal Inch) | 0.1240 |
| Initial End Force (Lb.) | 0.50 |
| Final End Force (Lb.) | 2.00 |
| Locking Element | Yes |
| Minimum Plunger Diameter (Decimal Inch) | 0.1230 |
| Plunger Length (Decimal Inch) | 0.8050 |
| Head Diameter (Decimal Inch) | 0.5000 |
| Head Height (Decimal Inch) | 0.2800 |
| Material | Stainless Steel |
