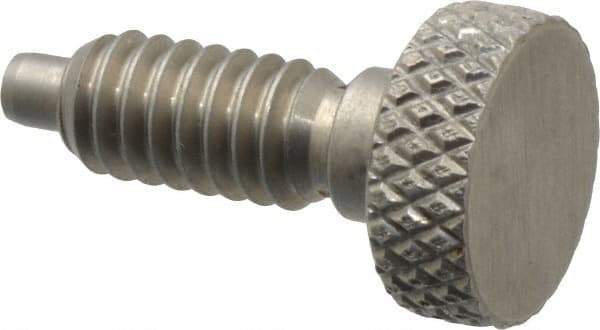

Vlier - 1/4-20, 1/2" Thread Length, 0.123" Max Plunger Diam, 1 Lb Init to 4 Lb Final End Force, Knob Handle Plunger - Knurled Knob, 0.79" Body Length, 1/2" Length Under Head/Shoulder, 1/8" Plunger Projection
Item #: 62123930
Brand: Vlier
Model #: SSL250
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | 1/4-20 |
| Thread Length (Decimal Inch) | 0.5000 |
| Plunger Type | Non-Locking |
| Knob Style | Knurled |
| Body Length (Decimal Inch) | 0.7900 |
| Length Under Head/Shoulder (Decimal Inch) | 0.5000 |
| Plunger Projection (Decimal Inch) | 0.1250 |
| Maximum Plunger Diameter (Decimal Inch) | 0.1230 |
| Initial End Force (Lb.) | 1.00 |
| Final End Force (Lb.) | 4.00 |
| Locking Element | No |
| Plunger Length (Decimal Inch) | 0.8130 |
| Head Diameter (Decimal Inch) | 0.5000 |
| Head Height (Decimal Inch) | 0.1900 |
| Head & Shoulder Height (Decimal Inch) | 0.3130 |
| Material | Stainless Steel |
| Plunger Diameter Tolerance (Decimal Inch) | +0.001/-0.000 |
