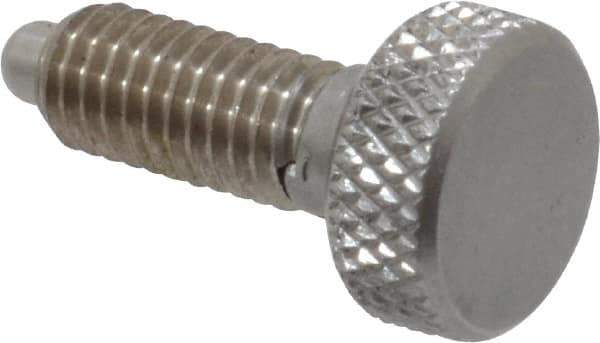

Vlier - 10-32, 0.4" Thread Length, 0.104" Max Plunger Diam, 0.5 Lb Init to 3 Lb Final End Force, Knob Handle Plunger - Knurled Knob, 0.46" Body Length, 0.4" Length Under Head/Shoulder, 3/32" Plunger Projection
Item #: 62123922
Brand: Vlier
Model #: SSL190P
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | 10-32 |
| Thread Length (Decimal Inch) | 0.4000 |
| Plunger Type | Non-Locking |
| Knob Style | Knurled |
| Body Length (Decimal Inch) | 0.4600 |
| Length Under Head/Shoulder (Decimal Inch) | 0.4000 |
| Plunger Projection (Decimal Inch) | 0.0940 |
| Maximum Plunger Diameter (Decimal Inch) | 0.1040 |
| Initial End Force (Lb.) | 0.50 |
| Final End Force (Lb.) | 3.00 |
| Locking Element | Yes |
| Plunger Length (Decimal Inch) | 0.6500 |
| Head Diameter (Decimal Inch) | 0.3800 |
| Head Height (Decimal Inch) | 0.1900 |
| Head & Shoulder Height (Decimal Inch) | 0.2500 |
| Material | Stainless Steel |
| Plunger Diameter Tolerance (Decimal Inch) | +0.001/-0.000 |
