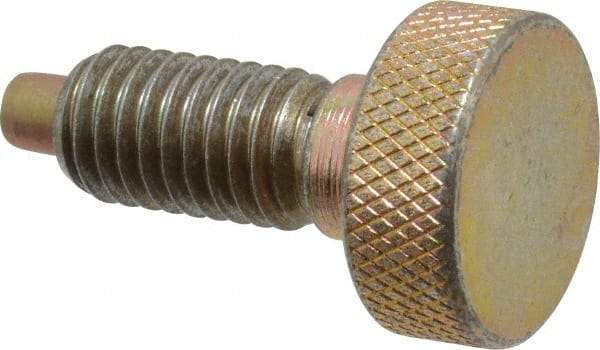

Vlier - 1/2-13, 7/8" Thread Length, 1/4" Max Plunger Diam, 1 Lb Init to 10 Lb Final End Force, Knob Handle Plunger - Knurled Knob, 1.13" Body Length, 7/8" Length Under Head/Shoulder, 1/4" Plunger Projection
Item #: 62123906
Brand: Vlier
Model #: SL500P
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | 1/2-13 |
| Thread Length (Decimal Inch) | 0.8750 |
| Plunger Type | Non-Locking |
| Knob Style | Knurled |
| Body Length (Decimal Inch) | 1.1300 |
| Length Under Head/Shoulder (Decimal Inch) | 0.8750 |
| Plunger Projection (Decimal Inch) | 0.2500 |
| Maximum Plunger Diameter (Decimal Inch) | 0.2480 |
| Initial End Force (Lb.) | 1.00 |
| Final End Force (Lb.) | 10.00 |
| Locking Element | Yes |
| Plunger Length (Decimal Inch) | 1.5000 |
| Head Diameter (Decimal Inch) | 1.0000 |
| Head Height (Decimal Inch) | 0.3800 |
| Head & Shoulder Height (Decimal Inch) | 0.6250 |
| Material | Steel |
| Finish/Coating | Zinc Gold Chromate |
| Plunger Diameter Tolerance (Decimal Inch) | +0.001/-0.000 |
