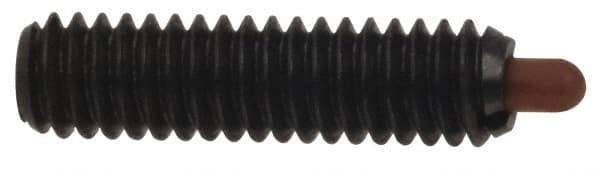

Vlier - 10-32, 3/4" Thread Length, 1/8" Plunger Projection, Stainless Steel Threaded Spring Plunger - 0.09 - 0.092" Max Plunger Diam, 3/4" Plunger Length, 1.3 Lb Init End Force, 2.7 Lb Final End Force
Item #: 62118633
Brand: Vlier
Model #: SSSD53
Exact Tooling IR#: 04
Features and Benefits
Delrin is a thermoplastic resin that combines the properties of metal and plastic. It offers strength, hardness, dimensional stability, fuel and abrasion resistance as well as has low friction.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Thread Size | 10-32 |
| Thread Length (Inch) | 3/4 |
| Nose Material | Delrin |
| Body Material | Stainless Steel |
| Maximum Plunger Diameter (Decimal Inch) | 0.0920 |
| Plunger Projection (Inch) | 1/8 |
| Locking Element | No |
| Minimum Plunger Diameter (Decimal Inch) | 0.0900 |
| Body Length (Inch) | 3/4 |
| Plunger Length Type | Standard |
| Plunger Length (Inch) | 3/4 |
| Final End Force (Lb.) | 2.70 |
| Initial End Force (Lb.) | 1.30 |
