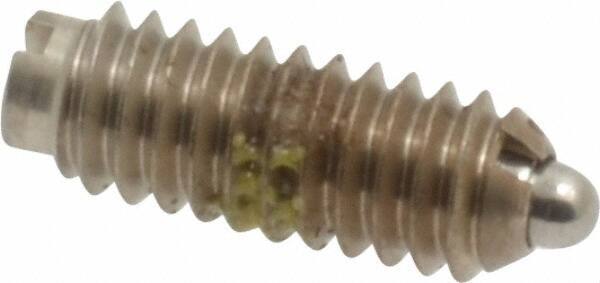

Vlier - 8-32, 7/16" Thread Length, 0.052" Plunger Projection, Stainless Steel Threaded Spring Plunger - 0.07" Max Plunger Diam, 0.437" Plunger Length, 0.5 Lb Init End Force, 1.5 Lb Final End Force
Item #: 62117874
Brand: Vlier
Model #: SSM51AP
Exact Tooling IR#: 04
Features and Benefits
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Thread Size | 8-32 |
| Thread Length (Decimal Inch) | 0.4370 |
| Nose Material | Stainless Steel |
| Body Material | Stainless Steel |
| Maximum Plunger Diameter (Decimal Inch) | 0.0700 |
| Plunger Projection (Decimal Inch) | 0.0520 |
| Locking Element | Yes |
| Body Length (Decimal Inch) | 0.4370 |
| Plunger Length Type | Stubby |
| Plunger Length (Decimal Inch) | 0.4370 |
| Final End Force (Lb.) | 1.50 |
| Initial End Force (Lb.) | 0.50 |
