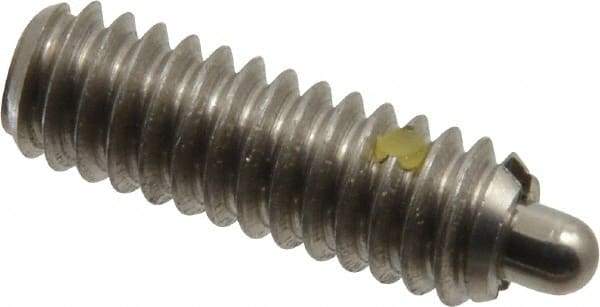

Vlier - 1/4-20, 3/4" Thread Length, 1/8" Plunger Projection, Stainless Steel Threaded Spring Plunger - 0.117 - 0.118" Max Plunger Diam, 3/4" Plunger Length, 2 Lb Init End Force, 9 Lb Final End Force
Item #: 62117270
Brand: Vlier
Model #: SSS54BN
Exact Tooling IR#: 04
Features and Benefits
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Thread Size | 1/4-20 |
| Thread Length (Inch) | 3/4 |
| Nose Material | Stainless Steel |
| Body Material | Stainless Steel |
| Maximum Plunger Diameter (Decimal Inch) | 0.1180 |
| Plunger Projection (Inch) | 1/8 |
| Locking Element | Yes |
| Minimum Plunger Diameter (Decimal Inch) | 0.1170 |
| Body Length (Inch) | 3/4 |
| Plunger Length Type | Standard |
| Plunger Length (Inch) | 3/4 |
| Final End Force (Lb.) | 9.00 |
| Initial End Force (Lb.) | 2.00 |
