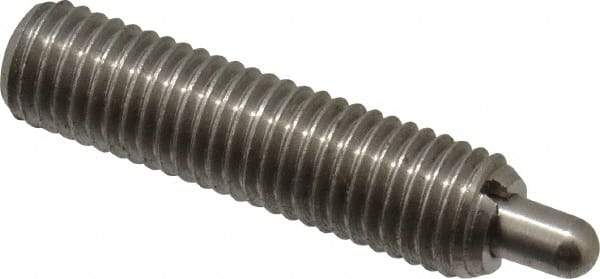

Vlier - 1/4-28, 1" Thread Length, 3/16" Plunger Projection, Stainless Steel Threaded Spring Plunger - 0.117 - 0.118" Max Plunger Diam, 1" Plunger Length, 3 Lb Init End Force, 13 Lb Final End Force
Item #: 62117254
Brand: Vlier
Model #: SSS54AN
Exact Tooling IR#: 04
Features and Benefits
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Thread Size | 1/4-28 |
| Thread Length (Inch) | 1 |
| Nose Material | Stainless Steel |
| Body Material | Stainless Steel |
| Maximum Plunger Diameter (Decimal Inch) | 0.1180 |
| Plunger Projection (Inch) | 3/16 |
| Locking Element | Yes |
| Minimum Plunger Diameter (Decimal Inch) | 0.1170 |
| Body Length (Inch) | 1 |
| Plunger Length Type | Standard |
| Plunger Length (Inch) | 1 |
| Final End Force (Lb.) | 13.00 |
| Initial End Force (Lb.) | 3.00 |
